Step1: Product

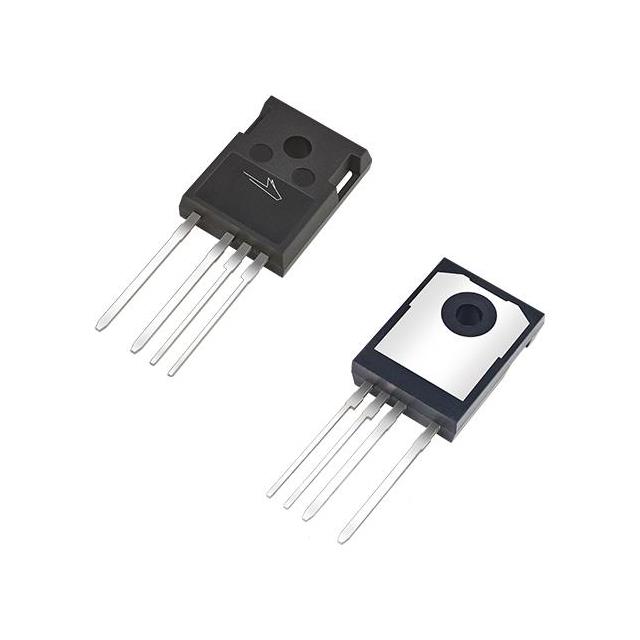

Wolfspeed, Inc. C3M0060075K1
Images are for reference only
Manufacturer
Manufacturer No
C3M0060075K1
Quantity
11
Availability
In Stock
Package
TO-247-4
Packaging
Bulk
Description
SICFET N-CH 750V 35A TO247
Detailed Description
N-Channel 750 V 35A (Tc) 126W (Tc) Through Hole TO-247-4L
Datasheet
Payment
Delivery
Mfr
Wolfspeed, Inc.
Grade
-
Series
-
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
-8V, +19V
Technology
SiCFET (Silicon Carbide)
FET Feature
-
Mounting Type
Through Hole
Qualification
-
Package / Case
TO-247-4
Vgs(th) (Max) @ Id
3.8V @ 3.67mA
Base Product Number
C3M0060075
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
78mOhm @ 13.4A, 15V
Power Dissipation (Max)
126W (Tc)
Supplier Device Package
TO-247-4L
Gate Charge (Qg) (Max) @ Vgs
52 nC @ 15 V
Drain to Source Voltage (Vdss)
750 V
Input Capacitance (Ciss) (Max) @ Vds
1203 pF @ 500 V
Drive Voltage (Max Rds On, Min Rds On)
15V
Current - Continuous Drain (Id) @ 25°C
35A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Wolfspeed, Inc. |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | -8V, +19V |
| Technology | SiCFET (Silicon Carbide) |
| FET Feature | - |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-247-4 |
| Vgs(th) (Max) @ Id | 3.8V @ 3.67mA |
| Base Product Number | C3M0060075 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 13.4A, 15V |
| Power Dissipation (Max) | 126W (Tc) |
| Supplier Device Package | TO-247-4L |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 15 V |
| Drain to Source Voltage (Vdss) | 750 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1203 pF @ 500 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
