Step1: Product
Wise-Integration WI62120

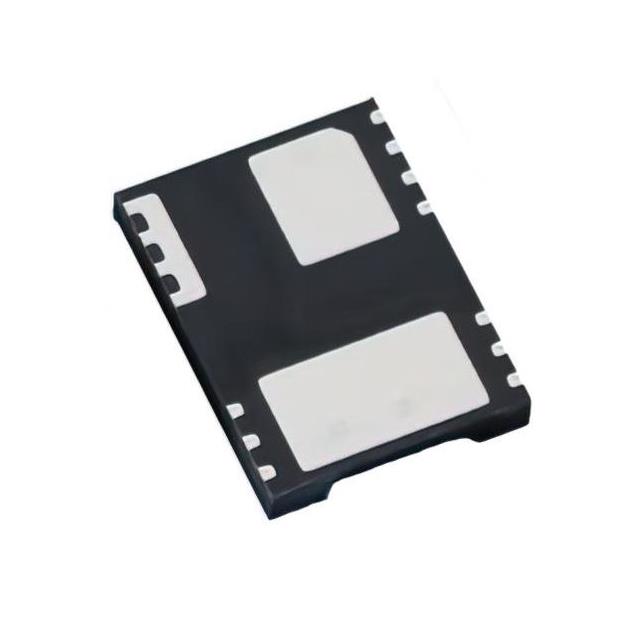

Images are for reference only
Manufacturer
Manufacturer No
WI62120
Package
14-PowerLDFN
Packaging
Tray
Description
MOSFET 650V 13A 14PQFN
Detailed Description
Mosfet Array 650V 13A Surface Mount 14-PQFN (6x8)
Datasheet
Payment
Delivery
Series
WiseGan™
Packaging
Tray
Technology
GaNFET (Gallium Nitride)
FET Feature
-
Power - Max
-
Manufacturer
Wise-Integration
Configuration
-
Mounting Type
Surface Mount
Package / Case
14-PowerLDFN
Vgs(th) (Max) @ Id
2.2V @ 10mA
Base Product Number
WI62120
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
-
Supplier Device Package
14-PQFN (6x8)
Gate Charge (Qg) (Max) @ Vgs
2.75nC @ 6V
Drain to Source Voltage (Vdss)
650V
Input Capacitance (Ciss) (Max) @ Vds
92.7pF @ 400V
Current - Continuous Drain (Id) @ 25°C
13A
| Attribute | Value |
|---|---|
| Series | WiseGan™ |
| Packaging | Tray |
| Technology | GaNFET (Gallium Nitride) |
| FET Feature | - |
| Power - Max | - |
| Manufacturer | Wise-Integration |
| Configuration | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-PowerLDFN |
| Vgs(th) (Max) @ Id | 2.2V @ 10mA |
| Base Product Number | WI62120 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | - |
| Supplier Device Package | 14-PQFN (6x8) |
| Gate Charge (Qg) (Max) @ Vgs | 2.75nC @ 6V |
| Drain to Source Voltage (Vdss) | 650V |
| Input Capacitance (Ciss) (Max) @ Vds | 92.7pF @ 400V |
| Current - Continuous Drain (Id) @ 25°C | 13A |
