Step1: Product

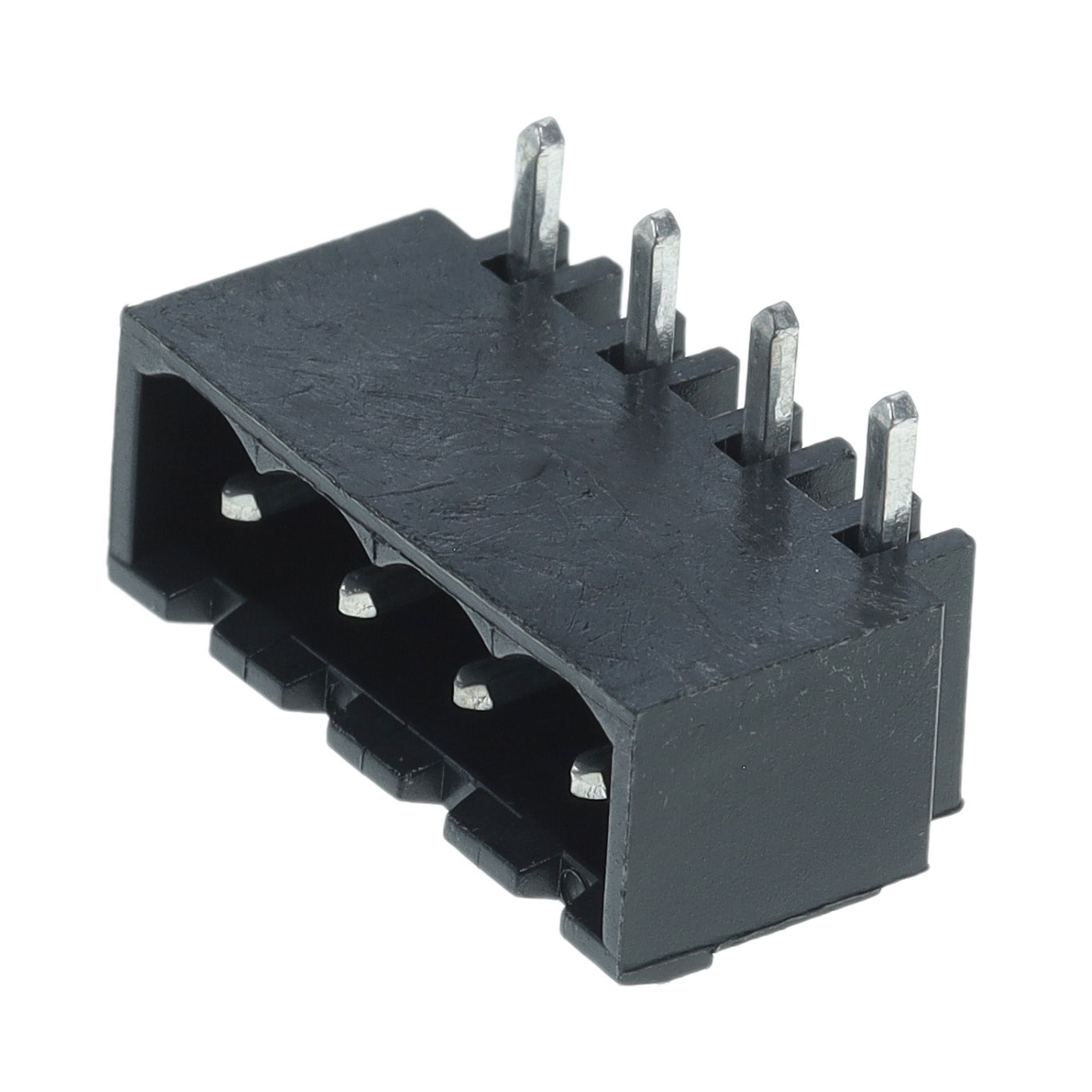

WECO Electrical Connectors Inc. 121-ME-211/04
Images are for reference only
Manufacturer
Manufacturer No
121-ME-211/04
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK HDR 4POS 5.08MM
Detailed Description
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet
Payment
Delivery
Type
Header, Male Pins, Shrouded (4 Side)
Color
Black
Pitch
0.200" (5.08mm)
Series
-
Features
-
Packaging
Bulk
Screw Size
-
Current - UL
16 A
Manufacturer
WECO Electrical Connectors Inc.
Voltage - UL
300 V
Current - IEC
16A
Mounting Type
Through Hole
Torque - Screw
-
Plug Wire Entry
-
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
1.122" (28.50mm)
Termination Style
Solder
Wire Strip Length
-
Header Orientation
90°, Right Angle
Ingress Protection
-
Contact Tail Length
0.161" (4.10mm)
Number of Positions
4
Positions Per Level
4
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 130°C
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Black |
| Pitch | 0.200" (5.08mm) |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 16 A |
| Manufacturer | WECO Electrical Connectors Inc. |
| Voltage - UL | 300 V |
| Current - IEC | 16A |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 1.122" (28.50mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | 90°, Right Angle |
| Ingress Protection | - |
| Contact Tail Length | 0.161" (4.10mm) |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 130°C |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
