Step1: Product

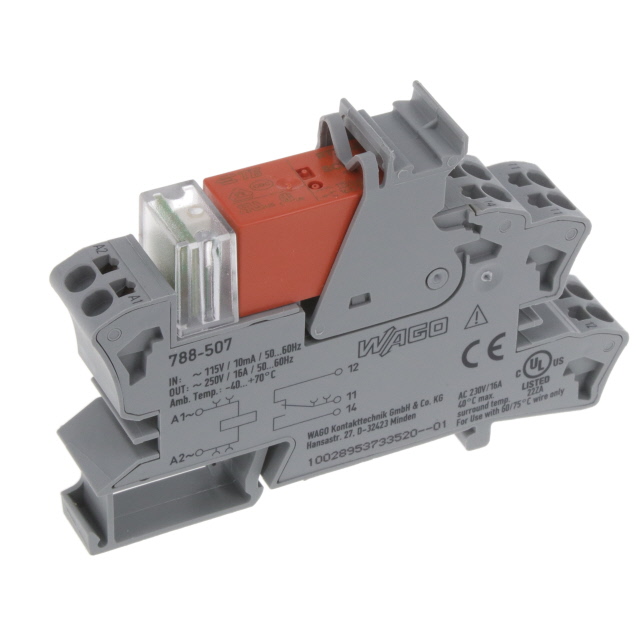

WAGO Corporation 788-507
Images are for reference only
Manufacturer
Manufacturer No
788-507
Packaging
Bulk
Description
RELAY GEN PURPOSE SPDT 16A 115V
Detailed Description
General Purpose Relay SPDT (1 Form C) 115VAC Coil DIN Rail
Datasheet
Payment
Delivery
Mfr
WAGO Corporation
Grade
-
Series
788
Features
Lighted Indicator
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
8 mA
Coil Voltage
115VAC
Contact Form
SPDT (1 Form C)
Operate Time
10 ms
Release Time
35 ms
Mounting Type
DIN Rail
Qualification
-
Approval Agency
-
Coil Insulation
-
Coil Resistance
14.4 kOhms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
250VAC - Max
Termination Style
Spring Terminal
Base Product Number
788
Load - Max Switching
4000VA
Must Operate Voltage
103.5 VAC
Must Release Voltage
-
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | WAGO Corporation |
| Grade | - |
| Series | 788 |
| Features | Lighted Indicator |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 8 mA |
| Coil Voltage | 115VAC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 10 ms |
| Release Time | 35 ms |
| Mounting Type | DIN Rail |
| Qualification | - |
| Approval Agency | - |
| Coil Insulation | - |
| Coil Resistance | 14.4 kOhms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC - Max |
| Termination Style | Spring Terminal |
| Base Product Number | 788 |
| Load - Max Switching | 4000VA |
| Must Operate Voltage | 103.5 VAC |
| Must Release Voltage | - |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
