Step1: Product
WAGO Corporation 734-324

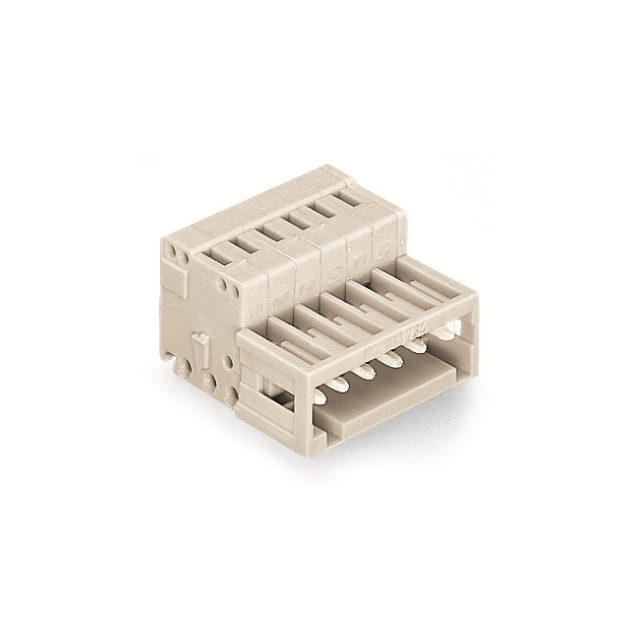

Images are for reference only
Manufacturer
Manufacturer No
734-324
Packaging
Box
Description
TERM BLOCK PLUG 24POS 3.50MM
Detailed Description
24 Position Terminal Block Plug, Male Pins 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug, Male Pins
Color
Gray
Pitch
0.138" (3.50mm)
Series
MCSMINI
Features
-
Packaging
Box
Screw Size
-
Current - UL
10 A
Manufacturer
WAGO Corporation
Voltage - UL
300 V
Current - IEC
10A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
320 V
Torque - Screw
-
Plug Wire Entry
180°
Contact Material
Electrolytic Copper
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.528" (13.40mm)
Termination Style
Screwless - Push-In Spring
Wire Strip Length
6-7mm
Header Orientation
-
Ingress Protection
-
Contact Tail Length
-
Number of Positions
24
Positions Per Level
24
Contact Mating Finish
Tin
Operating Temperature
-60°C ~ 100°C
Wire Gauge or Range - AWG
14-28 AWG
Wire Gauge or Range - mm²
0.08-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Male Pins |
| Color | Gray |
| Pitch | 0.138" (3.50mm) |
| Series | MCSMINI |
| Features | - |
| Packaging | Box |
| Screw Size | - |
| Current - UL | 10 A |
| Manufacturer | WAGO Corporation |
| Voltage - UL | 300 V |
| Current - IEC | 10A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 320 V |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | Electrolytic Copper |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.528" (13.40mm) |
| Termination Style | Screwless - Push-In Spring |
| Wire Strip Length | 6-7mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Number of Positions | 24 |
| Positions Per Level | 24 |
| Contact Mating Finish | Tin |
| Operating Temperature | -60°C ~ 100°C |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
