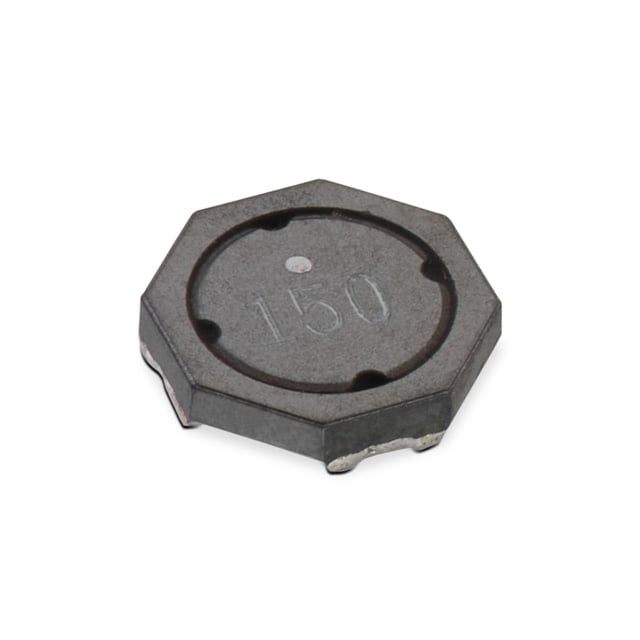

Würth Elektronik 76889430220
Images are for reference only
Manufacturer
Manufacturer No
76889430220
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
INDUCTOR ARRAY 2 COIL 22UH SMD
Detailed Description
Shielded 2 Coil Inductor Array Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 780mOhm DC Resistance (DCR) - Parallel 0.75 A Nonstandard
Datasheet
Payment
Delivery
Height
0.083" (2.10mm)
Series
WE-TDC HV
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.315" L x 0.315" W (8.00mm x 8.00mm)
Operating Temperature
-40°C ~ 125°C
Current Rating - Parallel
0.75 A
DC Resistance (DCR) - Series
-
Current Saturation - Parallel
1 A
DC Resistance (DCR) - Parallel
780mOhm
Inductance - Connected In Parallel
22 µH
| Attribute | Value |
|---|---|
| Height | 0.083" (2.10mm) |
| Series | WE-TDC HV |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Parallel | 0.75 A |
| DC Resistance (DCR) - Series | - |
| Current Saturation - Parallel | 1 A |
| DC Resistance (DCR) - Parallel | 780mOhm |
| Inductance - Connected In Parallel | 22 µH |
