Step1: Product

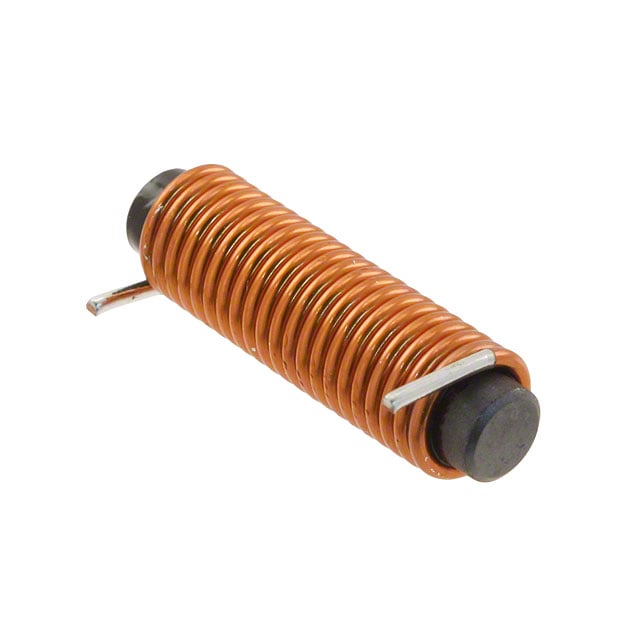

Würth Elektronik 744711010
Images are for reference only
Manufacturer
Manufacturer No
744711010
Package
Radial, Horizontal Cylinder (Open)
Packaging
Tray
Description
FIXED IND 10UH 10A 0.0088OHM TH
Detailed Description
10 µH Unshielded Drum Core, Wirewound Inductor 10 A 8.8mOhm Radial, Horizontal Cylinder (Open)
Datasheet
Payment
Delivery
Mfr
Würth Elektronik
Type
Drum Core, Wirewound
Series
WE-SD
Ratings
-
Q @ Freq
-
Packaging
Tray
Shielding
Unshielded
Tolerance
±25%
Inductance
10 µH
Mounting Type
Through Hole
Package / Case
Radial, Horizontal Cylinder (Open)
Material - Core
Ferrite
Size / Dimension
0.339" Dia x 1.217" L (8.60mm x 30.90mm)
DC Resistance (DCR)
8.8mOhm
Current Rating (Amps)
10 A
Height - Seated (Max)
-
Operating Temperature
-40°C ~ 150°C
Supplier Device Package
-
Frequency - Self Resonant
43MHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Type | Drum Core, Wirewound |
| Series | WE-SD |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Inductance | 10 µH |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Material - Core | Ferrite |
| Size / Dimension | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) |
| DC Resistance (DCR) | 8.8mOhm |
| Current Rating (Amps) | 10 A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 43MHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 10 kHz |
