Step1: Product

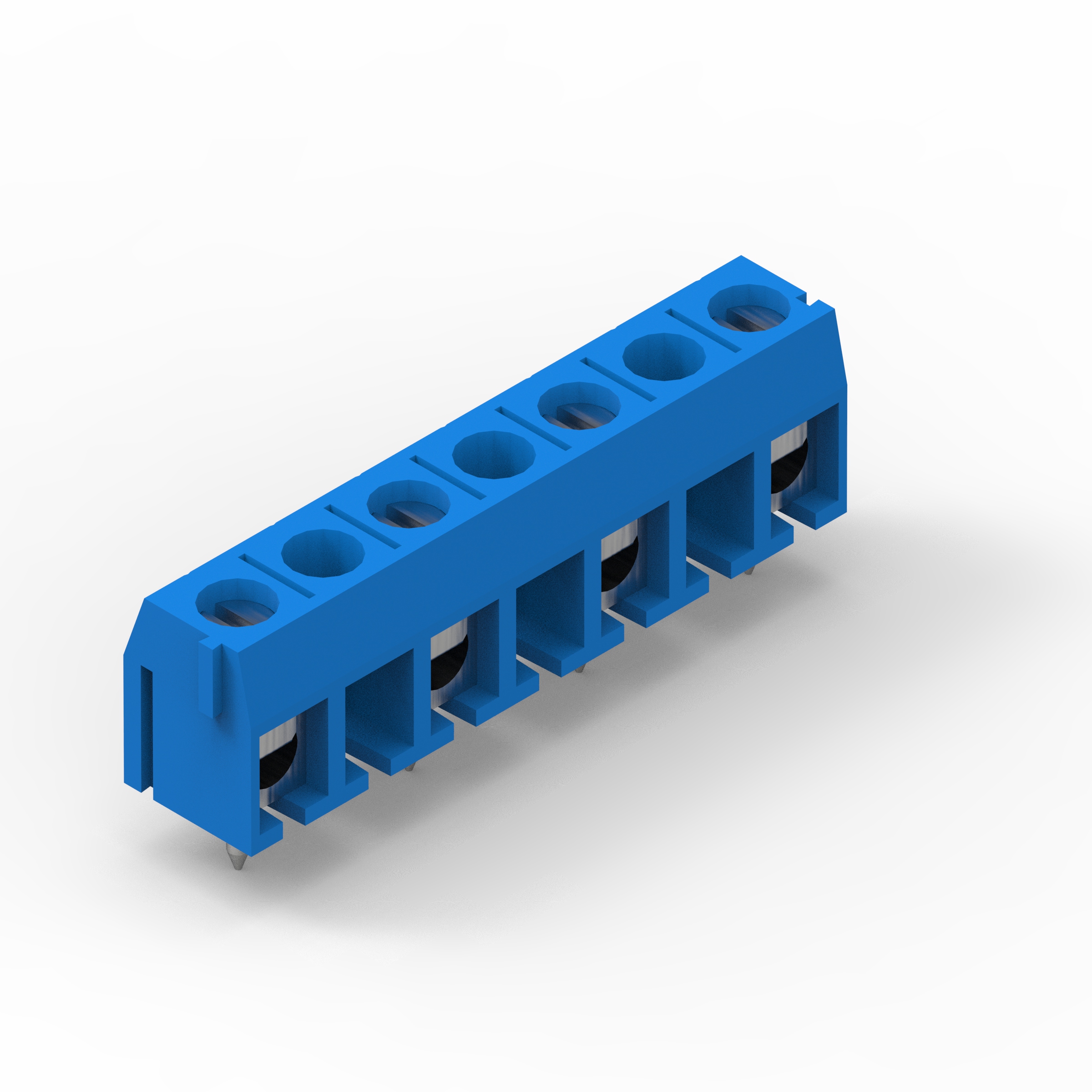

Würth Elektronik 691102810004
Images are for reference only
Manufacturer
Manufacturer No
691102810004
Packaging
Box
Description
WR-TBL TERMINAL BLOCK - WIRE PRO
Detailed Description
4 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole
Datasheet
Payment
Delivery
Color
Blue
Pitch
0.394" (10.00mm)
Series
WR-TBL Series 1028
Current
15 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Box
Wire Gauge
14-22 AWG
Manufacturer
Würth Elektronik
Screw Thread
M2.6
Mounting Type
Through Hole
Torque - Screw
0.3 Nm (2.6 Lb-In)
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Wire Termination
Screw - Leaf Spring, Wire Guard
Mating Orientation
Horizontal with Board
Positions Per Level
4
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Steel, Stainless
Screw Material - Plating
Steel - Zinc Plated
Contact Material - Plating
Brass - Tin Plated
| Attribute | Value |
|---|---|
| Color | Blue |
| Pitch | 0.394" (10.00mm) |
| Series | WR-TBL Series 1028 |
| Current | 15 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Box |
| Wire Gauge | 14-22 AWG |
| Manufacturer | Würth Elektronik |
| Screw Thread | M2.6 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.3 Nm (2.6 Lb-In) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 4 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Contact Material - Plating | Brass - Tin Plated |
