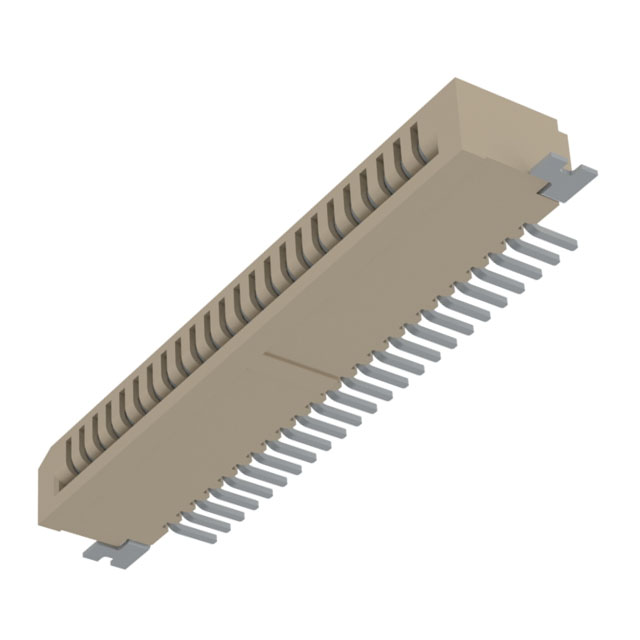

Würth Elektronik 686124188622
Images are for reference only
Manufacturer
Manufacturer No
686124188622
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC TOP 24POS 1MM R/A
Detailed Description
24 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.039" (1.00mm)
Series
WR-FPC
Features
Low Insertion Force (LIF), Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Würth Elektronik
Housing Color
Ivory
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
-
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FPC
Voltage Rating
125V
Locking Feature
-
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
-
FFC, FCB Thickness
0.29mm ~ 0.34mm
Height Above Board
0.122" (3.10mm)
Number of Positions
24
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Connector/Contact Type
Contacts, Top
Contact Finish Thickness
80.0µin (2.03µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | WR-FPC |
| Features | Low Insertion Force (LIF), Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Würth Elektronik |
| Housing Color | Ivory |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | - |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FPC |
| Voltage Rating | 125V |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| FFC, FCB Thickness | 0.29mm ~ 0.34mm |
| Height Above Board | 0.122" (3.10mm) |
| Number of Positions | 24 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Connector/Contact Type | Contacts, Top |
| Contact Finish Thickness | 80.0µin (2.03µm) |
| Material Flammability Rating | UL94 V-0 |
