Step1: Product

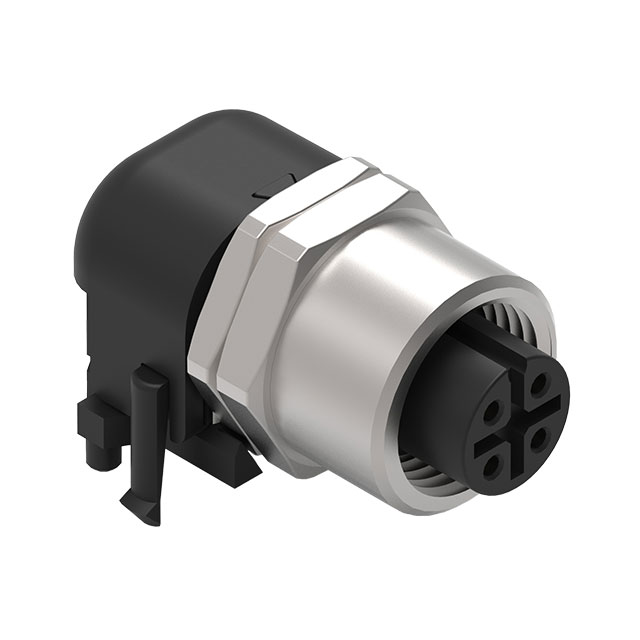

Würth Elektronik 643280100304
Images are for reference only
Manufacturer
Manufacturer No
643280100304
Packaging
Tray
Description
WR-CIRC M12 - SCREW - CODING A -
Detailed Description
4 Position Circular Connector Receptacle, Female Sockets Screw
Datasheet
Payment
Delivery
Mfr
Würth Elektronik
Color
Black
Series
WR-CIRCM12
Features
Board Guide, Board Lock
Packaging
Tray
Shielding
-
Orientation
A
Termination
Screw
Applications
-
Shell Finish
Nickel
Cable Opening
0.661" (16.80mm)
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Alloy
Voltage Rating
250V
Insert Material
Polybutylene Terephthalate (PBT)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
4
Shell Size - Insert
M12-4
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 90°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Color | Black |
| Series | WR-CIRCM12 |
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Shielding | - |
| Orientation | A |
| Termination | Screw |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.661" (16.80mm) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Alloy |
| Voltage Rating | 250V |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 90°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
