Step1: Product

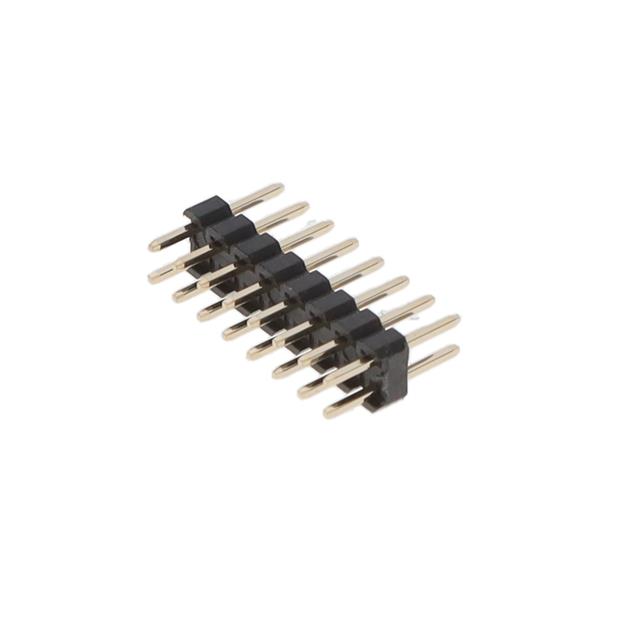

Würth Elektronik 62001621121
Images are for reference only
Manufacturer
Manufacturer No
62001621121
Packaging
Bag
Description
WR-PHD 2.00 MM DUAL PIN HEADER
Detailed Description
Connector Header Through Hole 16 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
Würth Elektronik
Style
Board to Board
Series
WR-PHD
Features
-
Packaging
Bag
Shrouding
Unshrouded
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
200VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.079" (2.00mm)
Ingress Protection
-
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
16
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.106" (2.69mm)
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.343" (8.70mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board |
| Series | WR-PHD |
| Features | - |
| Packaging | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Ingress Protection | - |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.106" (2.69mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.343" (8.70mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
