Step1: Product

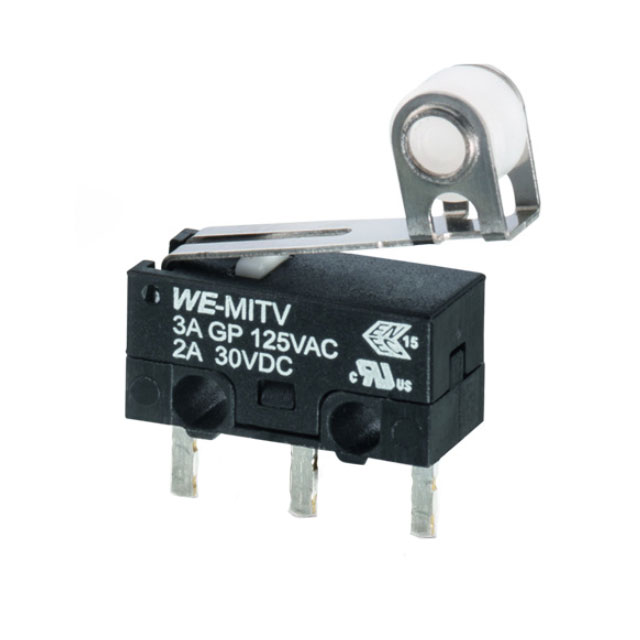

Würth Elektronik 463093370402
Images are for reference only
Manufacturer
Manufacturer No
463093370402
Packaging
Tray
Description
SWITCH LIMIT SPDT 3A 125V
Detailed Description
Switch SPDT Through Hole
Datasheet
Payment
Delivery
Series
WS-MITV
Circuit
SPDT
Features
-
Packaging
Tray
Pretravel
0.138" (3.5mm)
Overtravel
0.022" (0.55mm)
Manufacturer
Würth Elektronik
Actuator Type
Lever, Roller
Mounting Type
Through Hole
Release Force
5.000gf
Electrical Life
30,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
80gf
Switch Function
On-Mom
Termination Style
PC Pin
Ingress Protection
-
Operating Position
0.512" (13.0mm)
Differential Travel
0.020" (0.5mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
3A (AC), 2A (DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | WS-MITV |
| Circuit | SPDT |
| Features | - |
| Packaging | Tray |
| Pretravel | 0.138" (3.5mm) |
| Overtravel | 0.022" (0.55mm) |
| Manufacturer | Würth Elektronik |
| Actuator Type | Lever, Roller |
| Mounting Type | Through Hole |
| Release Force | 5.000gf |
| Electrical Life | 30,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 80gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Operating Position | 0.512" (13.0mm) |
| Differential Travel | 0.020" (0.5mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 3A (AC), 2A (DC) |
| Operating Temperature | -40°C ~ 85°C |
