Step1: Product

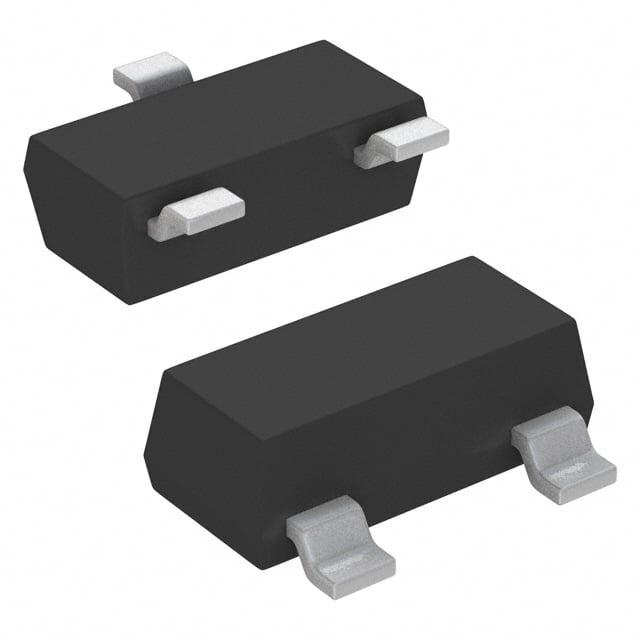

Vishay MPMT10019001AT5
Images are for reference only
Manufacturer
Manufacturer No
MPMT10019001AT5
Quantity
25
Availability
In Stock
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MPMT 1K 9K 0.1%ABS 0.05%RATIO T5
Detailed Description
1k, 9k Ohm ±0.1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±25ppm/°C TO-236-3, SC-59, SOT-23-3
Datasheet
Payment
Delivery
Series
MPM
Packaging
Tape & Reel (TR); Cut Tape (CT)
Tolerance
±0.1%
Applications
Voltage Divider (TCR Matched)
Circuit Type
Voltage Divider
Manufacturer
Vishay
Mounting Type
Surface Mount
Number of Pins
3
Package / Case
TO-236-3, SC-59, SOT-23-3
Size / Dimension
0.113" L x 0.051" W (2.86mm x 1.30mm)
Power Per Element
100mW
Resistance (Ohms)
1k, 9k
Number of Resistors
2
Resistor-Ratio-Drift
±2ppm/°C
Height - Seated (Max)
0.044" (1.12mm)
Operating Temperature
-55°C ~ 125°C
Resistor Matching Ratio
±0.05%
Supplier Device Package
SOT-23-3
Temperature Coefficient
±25ppm/°C
| Attribute | Value |
|---|---|
| Series | MPM |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±0.1% |
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Voltage Divider |
| Manufacturer | Vishay |
| Mounting Type | Surface Mount |
| Number of Pins | 3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Size / Dimension | 0.113" L x 0.051" W (2.86mm x 1.30mm) |
| Power Per Element | 100mW |
| Resistance (Ohms) | 1k, 9k |
| Number of Resistors | 2 |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Height - Seated (Max) | 0.044" (1.12mm) |
| Operating Temperature | -55°C ~ 125°C |
| Resistor Matching Ratio | ±0.05% |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | ±25ppm/°C |
