Step1: Product

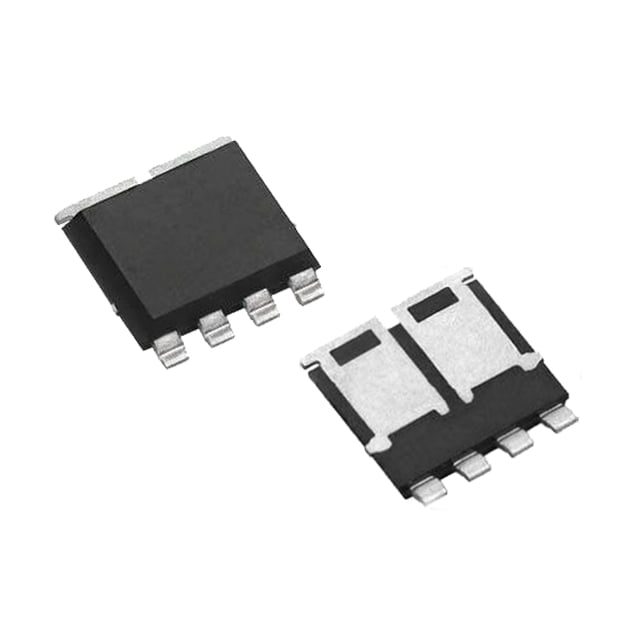

Vishay Siliconix SQJQ960EL-T1_GE3
Images are for reference only
Manufacturer
Manufacturer No
SQJQ960EL-T1_GE3
Quantity
5
Availability
In Stock
Package
PowerPAK® 8 x 8 Dual
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 60V 63A PPAK8X8
Detailed Description
Mosfet Array 60V 63A (Tc) 71W Surface Mount PowerPAK® 8 x 8 Dual
Datasheet
Payment
Delivery
Grade
Automotive
Series
TrenchFET®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Power - Max
71W
Manufacturer
Vishay Siliconix
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
PowerPAK® 8 x 8 Dual
Vgs(th) (Max) @ Id
2.5V @ 250µA
Base Product Number
SQJQ960
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
9mOhm @ 10A, 10V
Supplier Device Package
PowerPAK® 8 x 8 Dual
Gate Charge (Qg) (Max) @ Vgs
24nC @ 10V
Drain to Source Voltage (Vdss)
60V
Input Capacitance (Ciss) (Max) @ Vds
1950pF @ 25V
Current - Continuous Drain (Id) @ 25°C
63A (Tc)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Power - Max | 71W |
| Manufacturer | Vishay Siliconix |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | PowerPAK® 8 x 8 Dual |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Base Product Number | SQJQ960 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 10A, 10V |
| Supplier Device Package | PowerPAK® 8 x 8 Dual |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 1950pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) |
