Step1: Product
Vishay Dale ICM1206ER900M

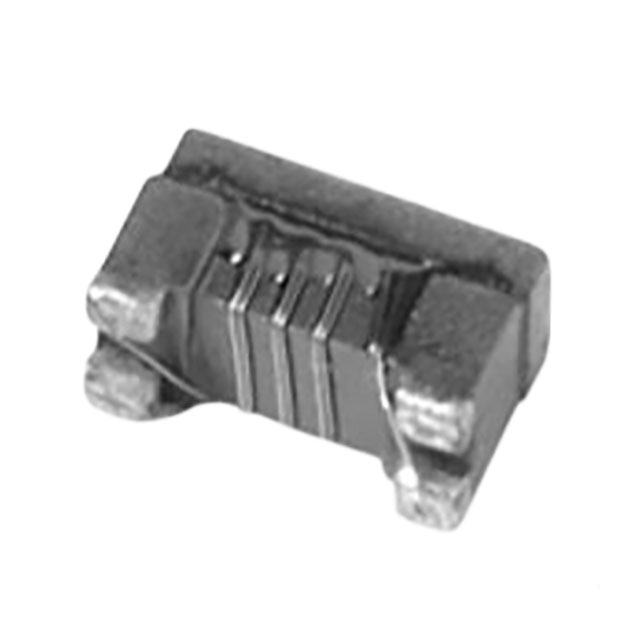

Images are for reference only
Manufacturer
Manufacturer No
ICM1206ER900M
Quantity
5
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC 370MA 2LN 90 OHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 370mA DCR 300mOhm
Datasheet
Payment
Delivery
Series
ICM-1206
Ratings
-
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Signal Line
Height (Max)
0.083" (2.10mm)
Manufacturer
Vishay Dale
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Approval Agency
-
Number of Lines
2
Size / Dimension
0.126" L x 0.063" W (3.20mm x 1.60mm)
Voltage Rating - AC
-
Voltage Rating - DC
50V
Current Rating (Max)
370mA
Impedance @ Frequency
90 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 85°C
DC Resistance (DCR) (Max)
300mOhm
| Attribute | Value |
|---|---|
| Series | ICM-1206 |
| Ratings | - |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Signal Line |
| Height (Max) | 0.083" (2.10mm) |
| Manufacturer | Vishay Dale |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 370mA |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) (Max) | 300mOhm |
