Step1: Product

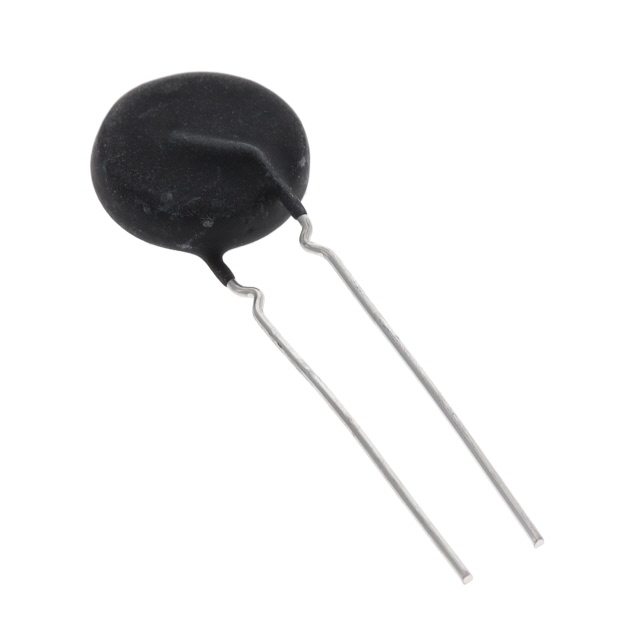

Vishay Ametherm CL20200120
Images are for reference only
Manufacturer
Manufacturer No
CL20200120
Package
Radial, Disc
Packaging
Bag
Description
PTC INRUSH CURRENT LIMITER, 20,1
Detailed Description
Polymeric PTC Resettable Fuse 680V 300 mA Ih Through Hole Radial, Disc
Datasheet
Payment
Delivery
Type
Polymeric
Series
-
Ratings
-
Packaging
Bag
Lead Spacing
-
Manufacturer
Vishay Ametherm
Mounting Type
Through Hole
Voltage - Max
680V
Package / Case
Radial, Disc
Approval Agency
-
Thickness (Max)
-
Size / Dimension
0.866" Dia x 0.236" T (22.00mm x 6.00mm)
Current - Trip (It)
600 mA
Height - Seated (Max)
-
Operating Temperature
-
Resistance - 25°C (Typ)
20 Ohms
Current - Hold (Ih) (Max)
300 mA
Resistance - Initial (Ri) (Min)
15 Ohms
Resistance - Post Trip (R1) (Max)
25 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | - |
| Ratings | - |
| Packaging | Bag |
| Lead Spacing | - |
| Manufacturer | Vishay Ametherm |
| Mounting Type | Through Hole |
| Voltage - Max | 680V |
| Package / Case | Radial, Disc |
| Approval Agency | - |
| Thickness (Max) | - |
| Size / Dimension | 0.866" Dia x 0.236" T (22.00mm x 6.00mm) |
| Current - Trip (It) | 600 mA |
| Height - Seated (Max) | - |
| Operating Temperature | - |
| Resistance - 25°C (Typ) | 20 Ohms |
| Current - Hold (Ih) (Max) | 300 mA |
| Resistance - Initial (Ri) (Min) | 15 Ohms |
| Resistance - Post Trip (R1) (Max) | 25 Ohms |
