Step1: Product

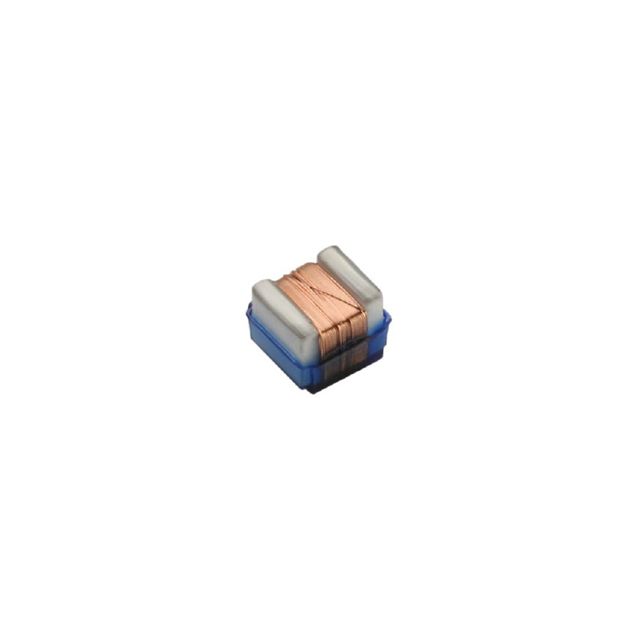

Viking Tech WL02JT7N5
Images are for reference only
Manufacturer
Manufacturer No
WL02JT7N5
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 7.5NH 680MA 104 MOHM
Detailed Description
7.5 nH Unshielded Drum Core, Wirewound Inductor 680 mA 104mOhm Max 0402 (1005 Metric)
Datasheet
Payment
Delivery
Mfr
Viking Tech
Type
Drum Core, Wirewound
Series
WL
Ratings
AEC-Q200
Features
-
Q @ Freq
22 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±5%
Inductance
7.5 nH
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.050" L x 0.030" W (1.27mm x 0.76mm)
DC Resistance (DCR)
104mOhm Max
Current Rating (Amps)
680 mA
Height - Seated (Max)
0.024" (0.61mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
4.8GHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Viking Tech |
| Type | Drum Core, Wirewound |
| Series | WL |
| Ratings | AEC-Q200 |
| Features | - |
| Q @ Freq | 22 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 7.5 nH |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.050" L x 0.030" W (1.27mm x 0.76mm) |
| DC Resistance (DCR) | 104mOhm Max |
| Current Rating (Amps) | 680 mA |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 4.8GHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 250 MHz |
