Step1: Product
VACUUMSCHMELZE T60405S6123X402

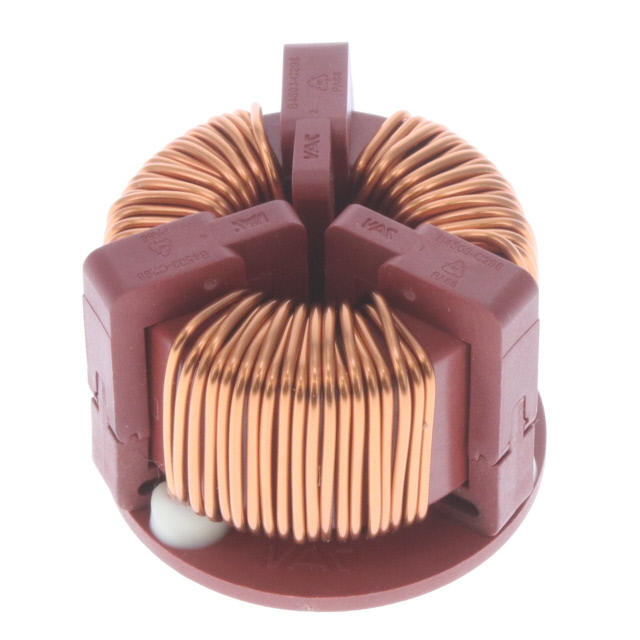

Images are for reference only
Manufacturer
Manufacturer No
T60405S6123X402
Availability
In Stock
Package
Horizontal, 8 PC Pin
Packaging
Box
Description
CMC 720UH 30A 4LN 750 OHM TH
Detailed Description
720 µH @ 100 kHz 4 Line Common Mode Choke Through Hole 750 Ohms @ 100 kHz 30A DCR
Datasheet
Payment
Delivery
Series
-
Ratings
-
Features
-
Packaging
Box
Filter Type
-
Height (Max)
1.331" (33.80mm)
Manufacturer
VACUUMSCHMELZE
Mounting Type
Through Hole
Package / Case
Horizontal, 8 PC Pin
Approval Agency
-
Number of Lines
4
Size / Dimension
2.323" Dia (59.00mm)
Voltage Rating - AC
-
Voltage Rating - DC
-
Current Rating (Max)
30A
Impedance @ Frequency
750 Ohms @ 100 kHz
Operating Temperature
-40°C ~ 130°C
Inductance @ Frequency
720 µH @ 100 kHz
DC Resistance (DCR) (Max)
-
| Attribute | Value |
|---|---|
| Series | - |
| Ratings | - |
| Features | - |
| Packaging | Box |
| Filter Type | - |
| Height (Max) | 1.331" (33.80mm) |
| Manufacturer | VACUUMSCHMELZE |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 8 PC Pin |
| Approval Agency | - |
| Number of Lines | 4 |
| Size / Dimension | 2.323" Dia (59.00mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Current Rating (Max) | 30A |
| Impedance @ Frequency | 750 Ohms @ 100 kHz |
| Operating Temperature | -40°C ~ 130°C |
| Inductance @ Frequency | 720 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | - |
