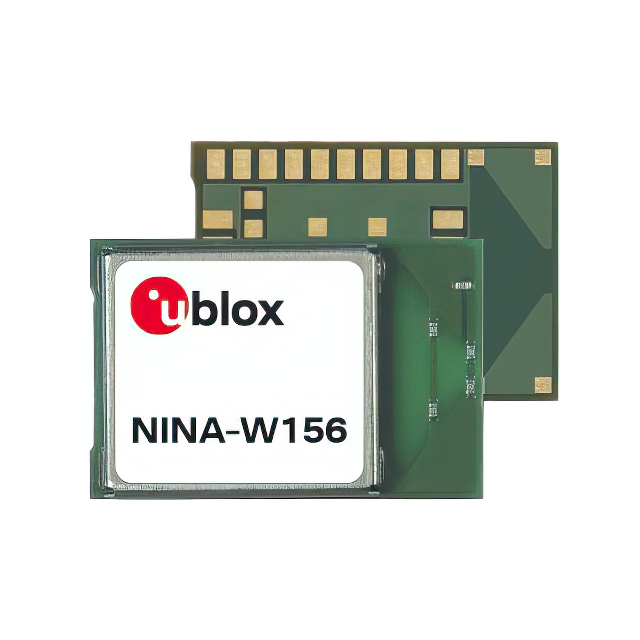

u-blox NINA-W156-03B
Images are for reference only
Manufacturer
Manufacturer No
NINA-W156-03B
Quantity
5
Availability
In Stock
Package
36-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MOD BT WIFI PCB TH SMD
Detailed Description
Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.5GHz PCB Trace Surface Mount
Datasheet
Payment
Delivery
Mfr
u-blox
Series
NINA-W15
Protocol
802.11b/g/n, Bluetooth v4.2
Data Rate
72Mbps
Frequency
2.4GHz ~ 2.5GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
CCK, DSSS, GFSK, QDPSK, QPSK, OFDM
Memory Size
16Mb Flash, 4Mb SRAM
Sensitivity
-96dBm
Antenna Type
PCB Trace
Mounting Type
Surface Mount
Package / Case
36-SMD Module
Power - Output
15dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
GPIO, SPI, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
ESP32
Base Product Number
NINA-W156
Current - Receiving
49mA ~ 117mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
67mA ~ 122mA
| Attribute | Value |
|---|---|
| Mfr | u-blox |
| Series | NINA-W15 |
| Protocol | 802.11b/g/n, Bluetooth v4.2 |
| Data Rate | 72Mbps |
| Frequency | 2.4GHz ~ 2.5GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | CCK, DSSS, GFSK, QDPSK, QPSK, OFDM |
| Memory Size | 16Mb Flash, 4Mb SRAM |
| Sensitivity | -96dBm |
| Antenna Type | PCB Trace |
| Mounting Type | Surface Mount |
| Package / Case | 36-SMD Module |
| Power - Output | 15dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | GPIO, SPI, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | ESP32 |
| Base Product Number | NINA-W156 |
| Current - Receiving | 49mA ~ 117mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 67mA ~ 122mA |
