TT Electronics/BI Magnetics HM42-10002LFTR

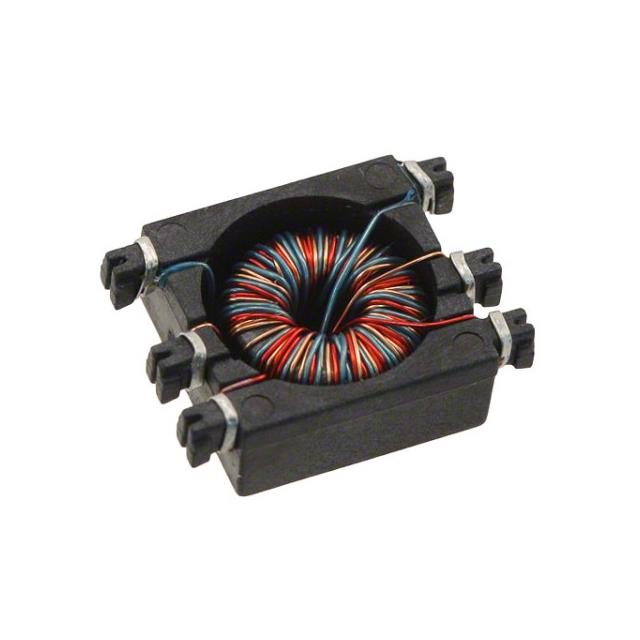

Images are for reference only

Manufacturer

TT Electronics/BI Magnetics

Manufacturer No

HM42-10002LFTR

Packaging

Cut Tape (CT)

Description

PULSE XFMR 2:1:1 300UH

Detailed Description

300µH Gate Drive Pulse Transformer 2:1:1 Surface Mount

Datasheet

HM42-10002LFTR

Payment

Delivery

Series

HM42

Weight

-

Packaging

Cut Tape (CT)

Inductance

300µH

Manufacturer

TT Electronics/BI Magnetics

Mounting Type

Surface Mount

ET (Volt-Time)

40.4VµS

Size / Dimension

0.260" L x 0.319" W (6.60mm x 8.10mm)

Transformer Type

Gate Drive

Base Product Number

HM42

Height - Seated (Max)

0.217" (5.50mm)

Operating Temperature

-40°C ~ 125°C

Turns Ratio - Primary:Secondary

2:1:1

Attribute	Value
Series	HM42
Weight	-
Packaging	Cut Tape (CT)
Inductance	300µH
Manufacturer	TT Electronics/BI Magnetics
Mounting Type	Surface Mount
ET (Volt-Time)	40.4VµS
Size / Dimension	0.260" L x 0.319" W (6.60mm x 8.10mm)
Transformer Type	Gate Drive
Base Product Number	HM42
Height - Seated (Max)	0.217" (5.50mm)
Operating Temperature	-40°C ~ 125°C
Turns Ratio - Primary:Secondary	2:1:1
