Step1: Product

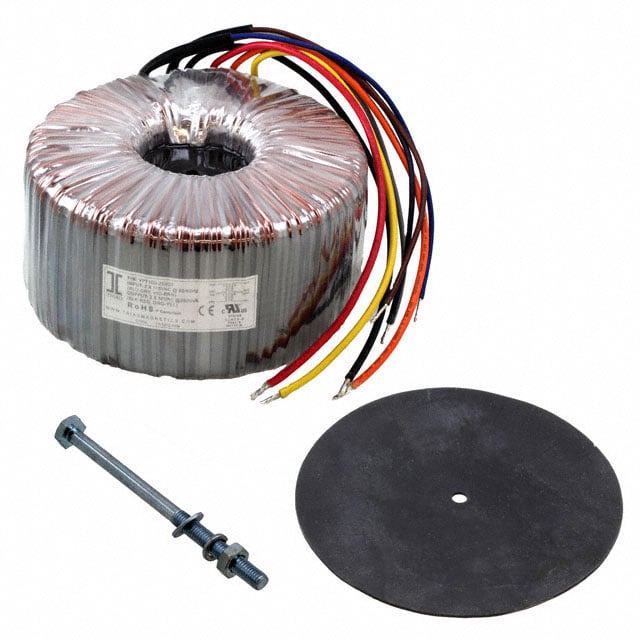

Triad Magnetics VPT100-25000
Images are for reference only
Manufacturer
Manufacturer No
VPT100-25000
Availability
In Stock
Packaging
Box
Description
PWR XFMR TOROIDAL 2500VA CHAS MT
Detailed Description
Toroidal 2500VA Power Transformer 115V, 230V Primary Parallel 50V, Series 100V Secondary Parallel 50A, Series 25A Chassis Mount
Datasheet
Payment
Delivery
Type
Toroidal
Series
Chassis Mount: World Series™
Weight
43 lbs (19.5 kg)
Packaging
Box
Center Tap
No
Power - Max
2500VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
208.00mm Dia x 112.00mm W
Termination Style
Wire Leads
Voltage - Primary
115V, 230V
Primary Winding(s)
Dual
Voltage - Isolation
4000Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
120.0mm
Current - Output (Max)
Parallel 50A, Series 25A
Voltage - Secondary (Full Load)
Parallel 50V, Series 100V
| Attribute | Value |
|---|---|
| Type | Toroidal |
| Series | Chassis Mount: World Series™ |
| Weight | 43 lbs (19.5 kg) |
| Packaging | Box |
| Center Tap | No |
| Power - Max | 2500VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 208.00mm Dia x 112.00mm W |
| Termination Style | Wire Leads |
| Voltage - Primary | 115V, 230V |
| Primary Winding(s) | Dual |
| Voltage - Isolation | 4000Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 120.0mm |
| Current - Output (Max) | Parallel 50A, Series 25A |
| Voltage - Secondary (Full Load) | Parallel 50V, Series 100V |
