Step1: Product

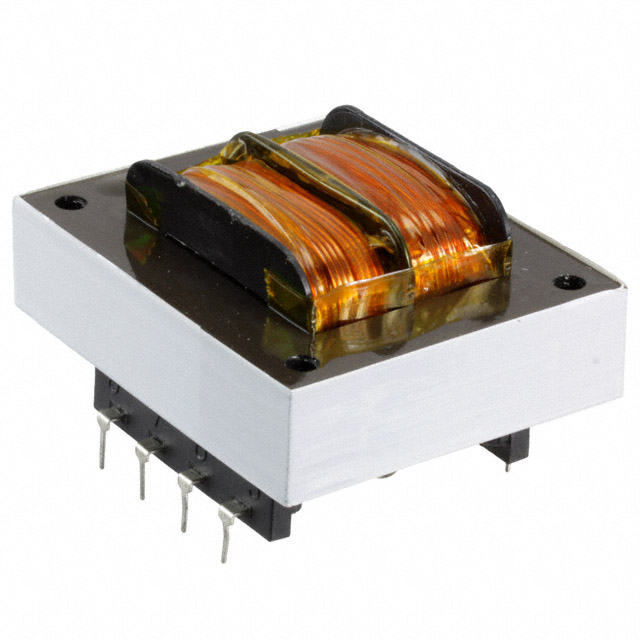

Triad Magnetics F28-1300
Images are for reference only
Manufacturer
Manufacturer No
F28-1300
Availability
In Stock
Packaging
Box
Description
PWR XFMR LAMINATED 36VA TH
Detailed Description
Laminated Core 36VA Power Transformer 115V Primary Parallel 14V, Series 28V Secondary Parallel 2.6A, Series 1.3A Through Hole
Datasheet
Payment
Delivery
Type
Laminated Core
Series
Split Pack™, Class 2/3, F
Weight
1.1 lbs (499 g)
Packaging
Box
Center Tap
No
Power - Max
36VA
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Size / Dimension
66.68mm L x 55.55mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
2500Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
39.67mm
Current - Output (Max)
Parallel 2.6A, Series 1.3A
Voltage - Secondary (Full Load)
Parallel 14V, Series 28V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Split Pack™, Class 2/3, F |
| Weight | 1.1 lbs (499 g) |
| Packaging | Box |
| Center Tap | No |
| Power - Max | 36VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Size / Dimension | 66.68mm L x 55.55mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 2500Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 39.67mm |
| Current - Output (Max) | Parallel 2.6A, Series 1.3A |
| Voltage - Secondary (Full Load) | Parallel 14V, Series 28V |
