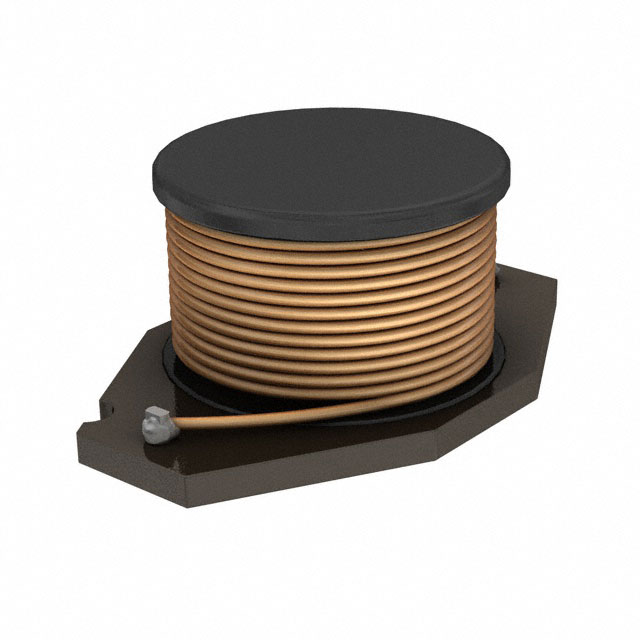

Triad Magnetics AX97-30820
Images are for reference only
Manufacturer
Manufacturer No
AX97-30820
Availability
In Stock
Package
Nonstandard
Packaging
Bulk
Description
FIXED IND 82UH 1.58A 240 MOHM
Detailed Description
82 µH Unshielded Drum Core, Wirewound Inductor 1.58 A 240mOhm Max Nonstandard
Datasheet
Payment
Delivery
Mfr
Triad Magnetics
Type
Drum Core, Wirewound
Series
AX97
Ratings
-
Q @ Freq
-
Packaging
Bulk
Shielding
Unshielded
Tolerance
±20%
Inductance
82 µH
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.530" L x 0.370" W (13.46mm x 9.40mm)
DC Resistance (DCR)
240mOhm Max
Current Rating (Amps)
1.58 A
Height - Seated (Max)
0.232" (5.90mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
SMD
Frequency - Self Resonant
-
Current - Saturation (Isat)
-
Inductance Frequency - Test
100 kHz
