Step1: Product

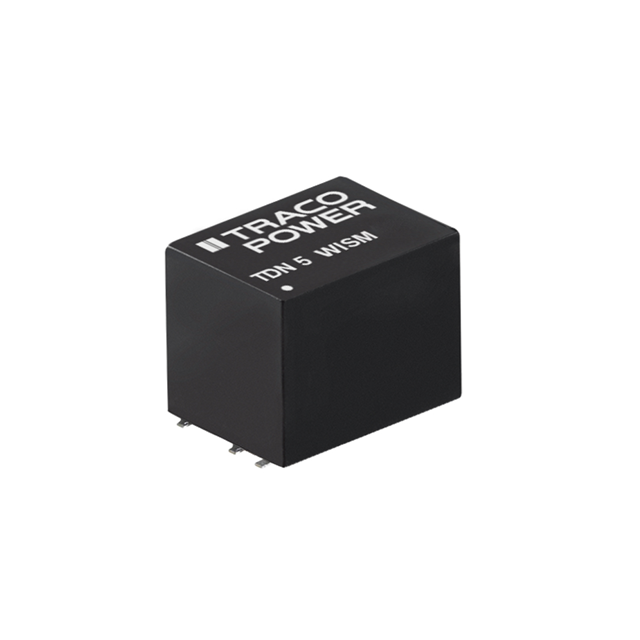

Traco Power TDN 5-2422WISM
Images are for reference only
Manufacturer
Manufacturer No
TDN 5-2422WISM
Quantity
83
Availability
In Stock
Package
7-SMD Module, 6 Leads
Packaging
Tube
Description
DC DC CONVERTER +/-12V 5W
Detailed Description
Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 9V - 36V Input
Datasheet
Payment
Delivery
Mfr
Traco Power
Type
Isolated Module
Series
TDN 5WISM (5W)
Features
Remote On/Off, SCP
Packaging
Tube
Efficiency
83%
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Power (Watts)
5 W
Package / Case
7-SMD Module, 6 Leads
Approval Agency
UL
Standard Number
60950-1; 62368-1
Control Features
-
Size / Dimension
0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Number of Outputs
2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Voltage - Output 3
-
Voltage - Output 4
-
Base Product Number
TDN 5
Voltage - Isolation
1.6 kV
Operating Temperature
-40°C ~ 75°C (With Derating)
Voltage - Input (Max)
36V
Voltage - Input (Min)
9V
Current - Output (Max)
210mA, 210mA
Supplier Device Package
-
| Attribute | Value |
|---|---|
| Mfr | Traco Power |
| Type | Isolated Module |
| Series | TDN 5WISM (5W) |
| Features | Remote On/Off, SCP |
| Packaging | Tube |
| Efficiency | 83% |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Power (Watts) | 5 W |
| Package / Case | 7-SMD Module, 6 Leads |
| Approval Agency | UL |
| Standard Number | 60950-1; 62368-1 |
| Control Features | - |
| Size / Dimension | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Base Product Number | TDN 5 |
| Voltage - Isolation | 1.6 kV |
| Operating Temperature | -40°C ~ 75°C (With Derating) |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 210mA, 210mA |
| Supplier Device Package | - |
