Toshiba Semiconductor and Storage TLP748J(TP1,F)

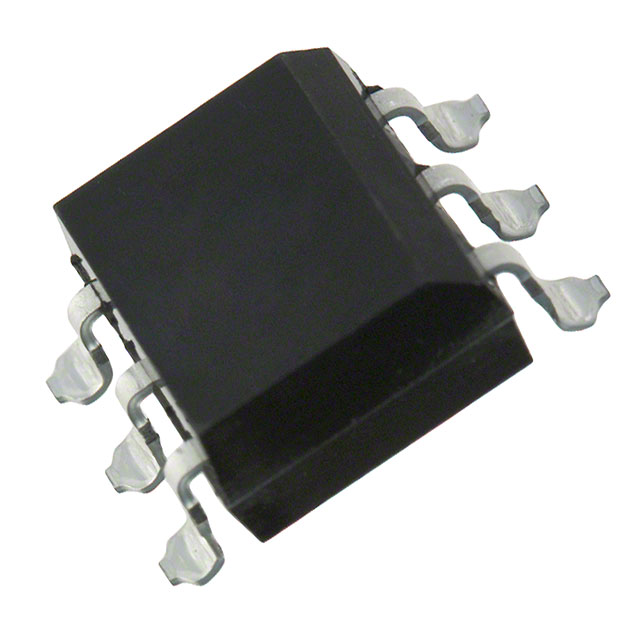

Images are for reference only
Manufacturer
Manufacturer No
TLP748J(TP1,F)
Package
6-SMD, Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISOLATOR 4KV SCR 1CH 6-SMD
Detailed Description
Optoisolator SCR Output 4000Vrms 1 Channel 6-SMD
Datasheet
Payment
Delivery
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Output Type
SCR
Manufacturer
Toshiba Semiconductor and Storage
Turn On Time
15µs
Mounting Type
Surface Mount
Package / Case
6-SMD, Gull Wing
Approval Agency
BSI, SEMKO, UR
Number of Channels
1
Static dV/dt (Min)
5V/µs
Base Product Number
TLP748
Current - Hold (Ih)
1mA
Voltage - Isolation
4000Vrms
Voltage - Off State
600 V
Operating Temperature
-40°C ~ 100°C
Zero Crossing Circuit
No
Supplier Device Package
6-SMD
Voltage - Forward (Vf) (Typ)
1.15V
Current - DC Forward (If) (Max)
50 mA
Current - LED Trigger (Ift) (Max)
10mA
Current - On State (It (RMS)) (Max)
150 mA
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Output Type | SCR |
| Manufacturer | Toshiba Semiconductor and Storage |
| Turn On Time | 15µs |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Approval Agency | BSI, SEMKO, UR |
| Number of Channels | 1 |
| Static dV/dt (Min) | 5V/µs |
| Base Product Number | TLP748 |
| Current - Hold (Ih) | 1mA |
| Voltage - Isolation | 4000Vrms |
| Voltage - Off State | 600 V |
| Operating Temperature | -40°C ~ 100°C |
| Zero Crossing Circuit | No |
| Supplier Device Package | 6-SMD |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 150 mA |
