Toshiba Semiconductor and Storage TLP151A(E)

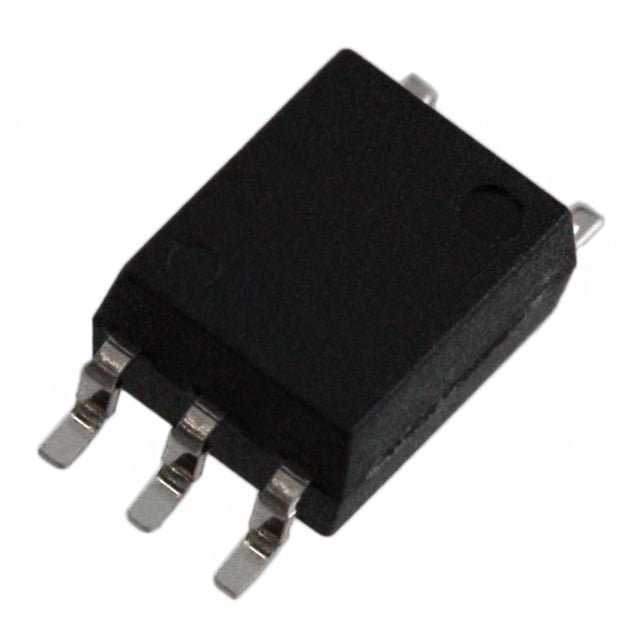

Images are for reference only
Manufacturer
Manufacturer No
TLP151A(E)
Quantity
38
Availability
In Stock
Package
6-SOIC (0.179", 4.55mm Width), 5 Leads
Packaging
Tube
Description
OPTOISO 3.75KV 1CH GT DVR 6SO-5
Detailed Description
600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO, 5 Lead
Datasheet
Payment
Delivery
Mfr
Toshiba Semiconductor and Storage
Series
-
Packaging
Tube
Technology
Optical Coupling
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.179", 4.55mm Width), 5 Leads
Approval Agency
cUL, UL
Number of Channels
1
Base Product Number
TLP151
Voltage - Isolation
3750Vrms
Current - Peak Output
600mA
Operating Temperature
-40°C ~ 110°C
Rise / Fall Time (Typ)
50ns, 50ns
Supplier Device Package
6-SO, 5 Lead
Voltage - Output Supply
10V ~ 30V
Current - Output High, Low
400mA, 400mA
Pulse Width Distortion (Max)
350ns
Voltage - Forward (Vf) (Typ)
1.55V
Current - DC Forward (If) (Max)
25 mA
Propagation Delay tpLH / tpHL (Max)
500ns, 500ns
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| Technology | Optical Coupling |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Approval Agency | cUL, UL |
| Number of Channels | 1 |
| Base Product Number | TLP151 |
| Voltage - Isolation | 3750Vrms |
| Current - Peak Output | 600mA |
| Operating Temperature | -40°C ~ 110°C |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Supplier Device Package | 6-SO, 5 Lead |
| Voltage - Output Supply | 10V ~ 30V |
| Current - Output High, Low | 400mA, 400mA |
| Pulse Width Distortion (Max) | 350ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 25 mA |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
