Step1: Product

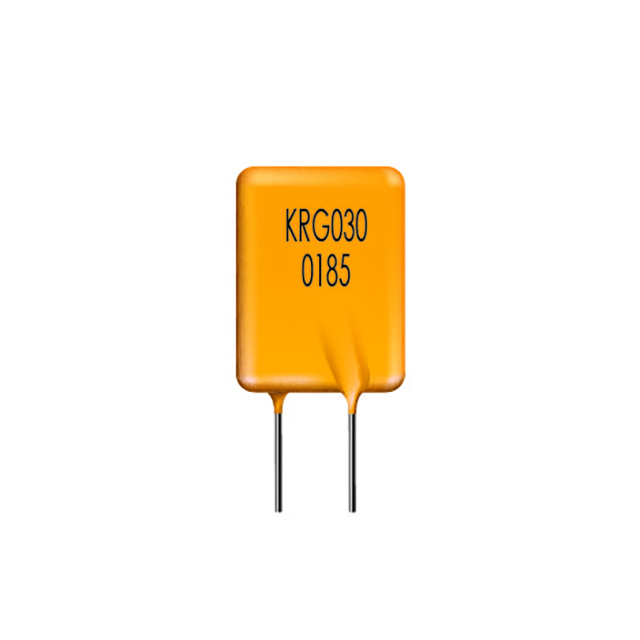

Thinking Electronics Industrial Co. KRG0300300SBY
Images are for reference only
Manufacturer
Manufacturer No
KRG0300300SBY
Package
Radial, Disc
Packaging
Bag
Description
Polymer PTC Resettable Fuse 30V
Detailed Description
Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
Datasheet
Payment
Delivery
Type
Polymeric
Series
KRG
Ratings
-
Packaging
Bag
Lead Spacing
0.197" (5.00mm)
Manufacturer
Thinking Electronics Industrial Co.
Time to Trip
10.8 s
Current - Max
40 A
Mounting Type
Through Hole
Voltage - Max
30V
Package / Case
Radial, Disc
Approval Agency
cUL, TUV, UL
Thickness (Max)
-
Size / Dimension
0.449" L x 0.138" W (11.40mm x 3.50mm)
Current - Trip (It)
6 A
Height - Seated (Max)
0.681" (17.30mm)
Operating Temperature
-40°C ~ 85°C
Resistance - 25°C (Typ)
50 mOhms
Current - Hold (Ih) (Max)
3 A
Resistance - Initial (Ri) (Min)
20 mOhms
Resistance - Post Trip (R1) (Max)
80 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | KRG |
| Ratings | - |
| Packaging | Bag |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | Thinking Electronics Industrial Co. |
| Time to Trip | 10.8 s |
| Current - Max | 40 A |
| Mounting Type | Through Hole |
| Voltage - Max | 30V |
| Package / Case | Radial, Disc |
| Approval Agency | cUL, TUV, UL |
| Thickness (Max) | - |
| Size / Dimension | 0.449" L x 0.138" W (11.40mm x 3.50mm) |
| Current - Trip (It) | 6 A |
| Height - Seated (Max) | 0.681" (17.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| Resistance - 25°C (Typ) | 50 mOhms |
| Current - Hold (Ih) (Max) | 3 A |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
