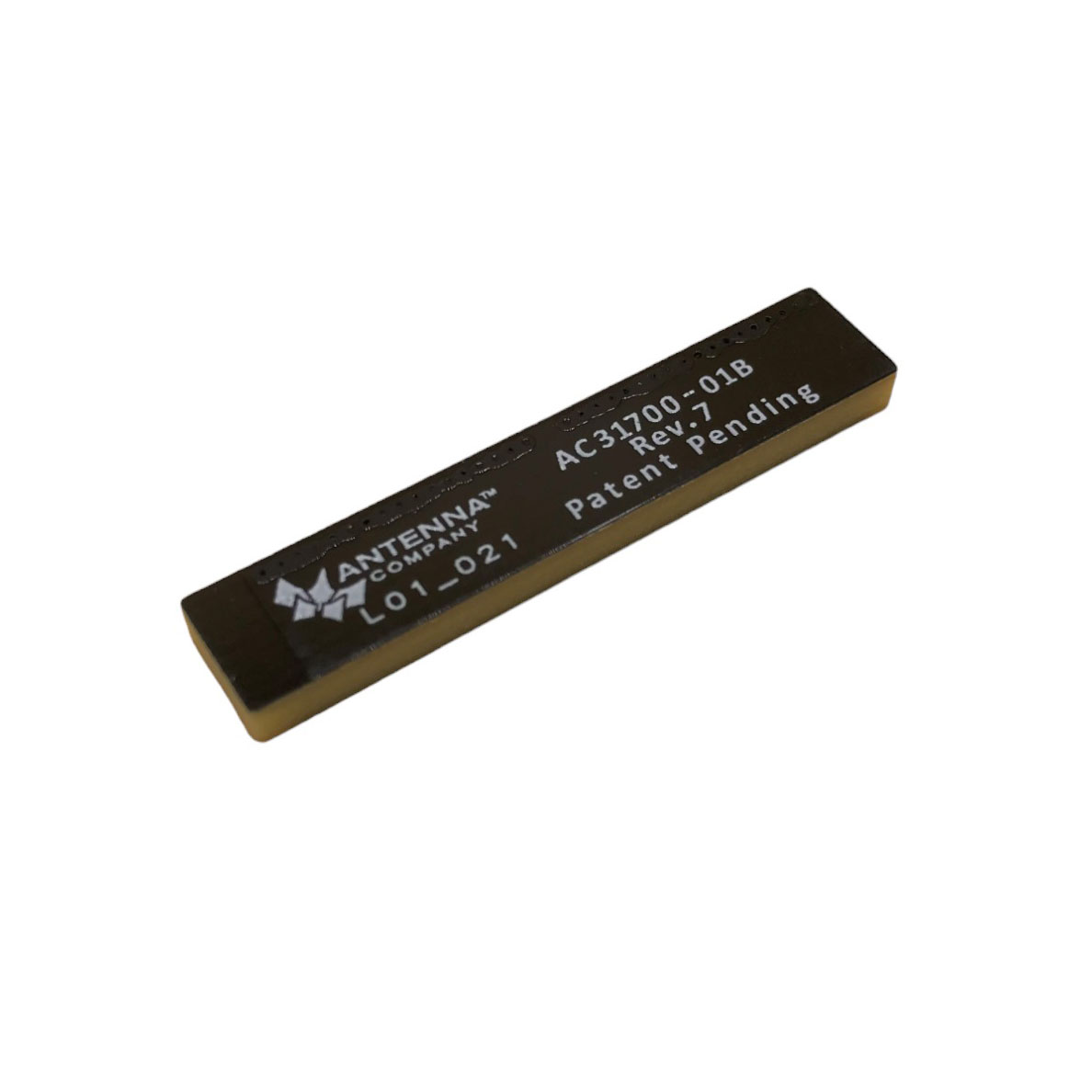

The Antenna Company AC31700-01B
Images are for reference only
Manufacturer
Manufacturer No
AC31700-01B
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ANT BOOSTER 5G 4G LTE SMD CHIP
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS Chip Solder Surface Mount
Datasheet
Payment
Delivery
Gain
1dBi, 0.5dBi, 3dBi, 5dBi
VSWR
4.5, 5, 3.5, 3.4
Series
-
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
2 W
Return Loss
-3.9dB, -3.5dB, -5.1dB, -5.3dB
Termination
Solder
Antenna Type
Chip
Applications
4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
0.118" (3.00mm)
Manufacturer
The Antenna Company
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz
Number of Bands
4
Ingress Protection
-
RF Family/Standard
Cellular
Base Product Number
AC31700
Frequency (Center/Band)
700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 0.5dBi, 3dBi, 5dBi |
| VSWR | 4.5, 5, 3.5, 3.4 |
| Series | - |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 2 W |
| Return Loss | -3.9dB, -3.5dB, -5.1dB, -5.3dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 0.118" (3.00mm) |
| Manufacturer | The Antenna Company |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz |
| Number of Bands | 4 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Base Product Number | AC31700 |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz |
