Step1: Product

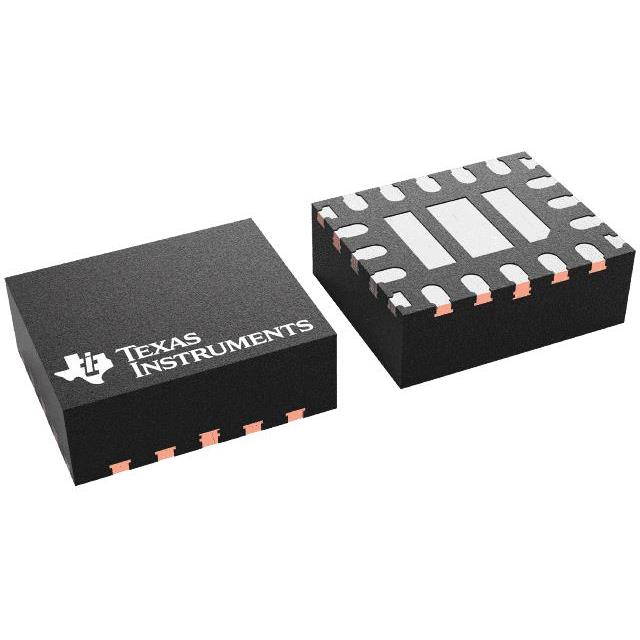

Texas Instruments TRF1305B2RYPR
Images are for reference only
Manufacturer
Manufacturer No
TRF1305B2RYPR
Quantity
105
Availability
In Stock
Package
16-QFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
7.6 GHZ FULL-POWER 3-DB BANDWIDT
Detailed Description
RF Amplifier IC VSAT 0Hz ~ 6.5GHz 16-WQFN-FCRLF (2.5x3)
Datasheet
Payment
Delivery
Gain
9.8dB
P1dB
16dBm
Series
-
RF Type
VSAT
Frequency
0Hz ~ 6.5GHz
Packaging
Tape & Reel (TR)
Manufacturer
Texas Instruments
Noise Figure
12.4dB
Mounting Type
Surface Mount
Package / Case
16-QFN Exposed Pad
Test Frequency
2GHz
Current - Supply
180mA
Voltage - Supply
2.5V ~ 5V
Base Product Number
TRF1305
Supplier Device Package
16-WQFN-FCRLF (2.5x3)
| Attribute | Value |
|---|---|
| Gain | 9.8dB |
| P1dB | 16dBm |
| Series | - |
| RF Type | VSAT |
| Frequency | 0Hz ~ 6.5GHz |
| Packaging | Tape & Reel (TR) |
| Manufacturer | Texas Instruments |
| Noise Figure | 12.4dB |
| Mounting Type | Surface Mount |
| Package / Case | 16-QFN Exposed Pad |
| Test Frequency | 2GHz |
| Current - Supply | 180mA |
| Voltage - Supply | 2.5V ~ 5V |
| Base Product Number | TRF1305 |
| Supplier Device Package | 16-WQFN-FCRLF (2.5x3) |
