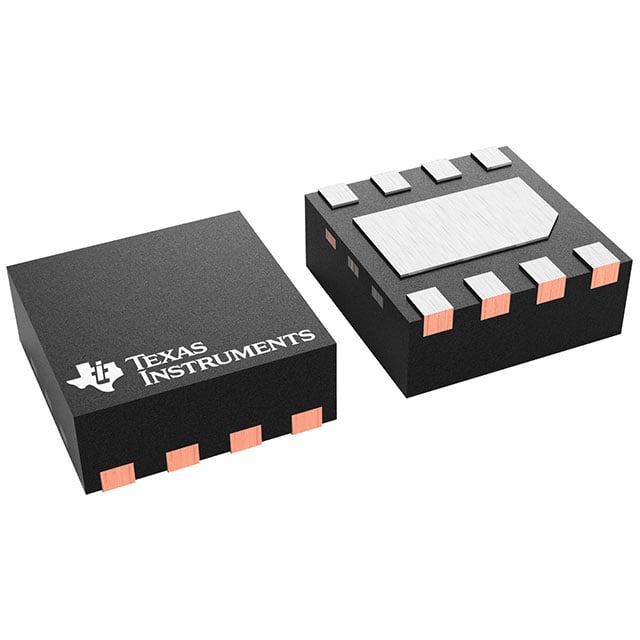

Texas Instruments LM2105DSGR
Images are for reference only
Manufacturer
Manufacturer No
LM2105DSGR
Quantity
1,801
Availability
In Stock
Package
8-WFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
105-V 0.5-A/0.8-A HALF-BRIDGE GA
Detailed Description
Half Bridge Driver DC Motors, General Purpose NMOS 8-WSON (2x2)
Datasheet
Payment
Delivery
Series
-
Features
Bootstrap Circuit
Interface
Logic
Load Type
Capacitive
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
NMOS
Applications
DC Motors, General Purpose
Manufacturer
Texas Instruments
Rds On (Typ)
-
Mounting Type
Surface Mount
Package / Case
8-WFDFN Exposed Pad
Voltage - Load
-
Fault Protection
UVLO
Voltage - Supply
5V ~ 18V
Output Configuration
Half Bridge
Current - Peak Output
800mA
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
8-WSON (2x2)
Current - Output / Channel
500mA
| Attribute | Value |
|---|---|
| Series | - |
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Capacitive |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | NMOS |
| Applications | DC Motors, General Purpose |
| Manufacturer | Texas Instruments |
| Rds On (Typ) | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Voltage - Load | - |
| Fault Protection | UVLO |
| Voltage - Supply | 5V ~ 18V |
| Output Configuration | Half Bridge |
| Current - Peak Output | 800mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 8-WSON (2x2) |
| Current - Output / Channel | 500mA |
