Step1: Product

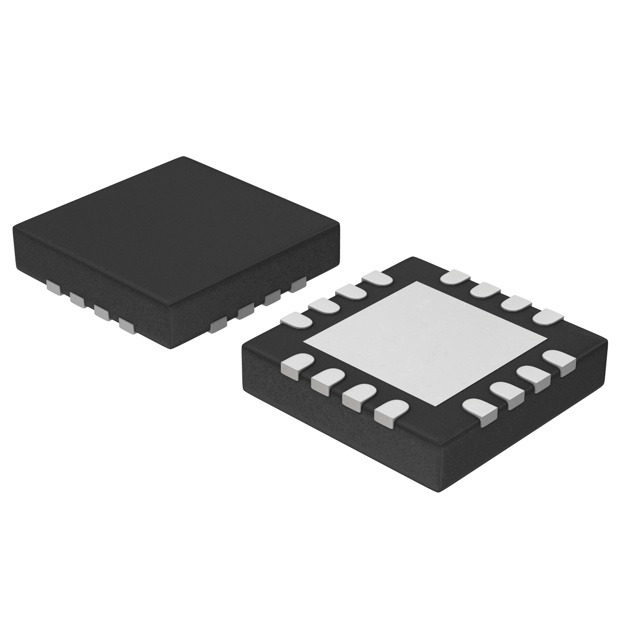

Texas Instruments CC1150RGVR
Images are for reference only
Manufacturer
Manufacturer No
CC1150RGVR
Date Code
1849
Quantity
4,847
Availability
In Stock
Package
16-VQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF XMITTER UHF 300-348MHZ 16VQFN
Detailed Description
RF Transmitter UHF 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz 10dBm 500kBaud Antenna 16-VQFN Exposed Pad
Datasheet
Payment
Delivery
Series
-
Features
-
Frequency
300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Memory Size
-
Applications
General Purpose
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Data Interface
SPI
Package / Case
16-VQFN Exposed Pad
Power - Output
10dBm
Data Rate (Max)
500kBaud
Voltage - Supply
1.8V ~ 3.6V
Antenna Connector
-
Base Product Number
CC1150
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
29mA
Modulation or Protocol
UHF
Supplier Device Package
16-VQFN (4x4)
| Attribute | Value |
|---|---|
| Series | - |
| Features | - |
| Frequency | 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Memory Size | - |
| Applications | General Purpose |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Data Interface | SPI |
| Package / Case | 16-VQFN Exposed Pad |
| Power - Output | 10dBm |
| Data Rate (Max) | 500kBaud |
| Voltage - Supply | 1.8V ~ 3.6V |
| Antenna Connector | - |
| Base Product Number | CC1150 |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 29mA |
| Modulation or Protocol | UHF |
| Supplier Device Package | 16-VQFN (4x4) |
