Step1: Product

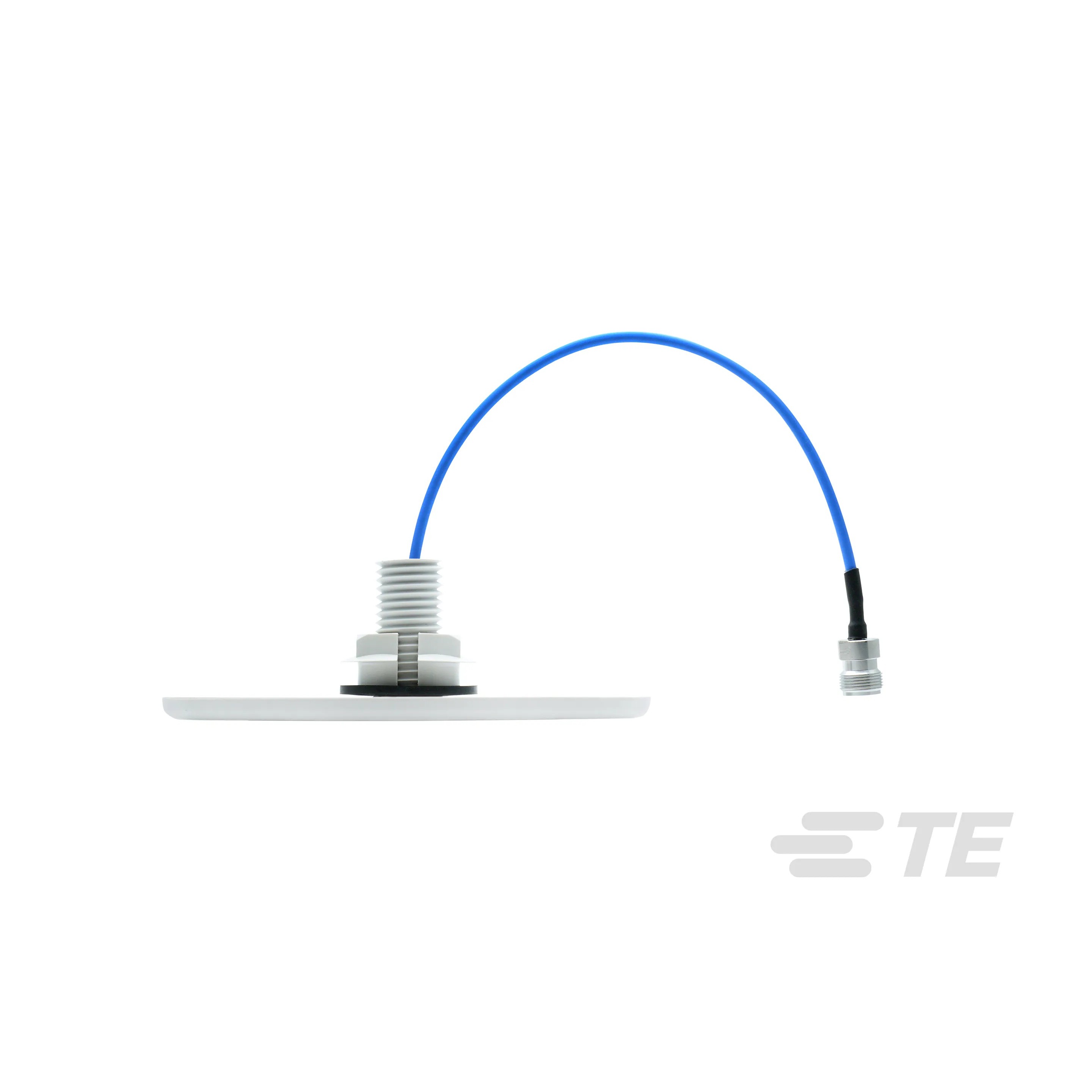

TE Connectivity CFSA35606P1-30D43F
Images are for reference only
Manufacturer
Manufacturer No
CFSA35606P1-30D43F
Packaging
Bulk
Description
OMNI,LOW PIM,30CM,D43F, 350-6000
Detailed Description
RF ANTENNA 2G, 3G, 4G, AWS, CBRS, LTE, UMTS Flat Panel 4.3/10 - Female Ceiling Mount
Datasheet
Payment
Delivery
Gain
4.5dBi, 4.4dBi, 3.7dBi, 4dBi, 4.2dBi, 4.6dBi, 5.6dBi, 5.4dBi, 4.1dBi, 5dBi, 5.7dBi, 6.8dBi, 7.3dBi
VSWR
2, 2.5
Grade
-
Series
-
Features
Cable - 304.8mm
Packaging
Bulk
Return Loss
-
Termination
4.3/10 - Female
Antenna Type
Flat Panel
Applications
2G, 3G, 4G, AWS, CBRS, LTE, UMTS
Height (Max)
0.300" (7.62mm)
Manufacturer
TE Connectivity
Mounting Type
Ceiling Mount
Qualification
-
Frequency Group
Wide Band
Frequency Range
350MHz ~ 380MHz, 380MHz ~ 520MHz, 600MHz ~ 698MHz, 698MHz ~ 806MHz, 806MHz ~ 894MHz, 894MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz
Number of Bands
13
Ingress Protection
-
RF Family/Standard
Cellular
Frequency (Center/Band)
365MHz, 450MHz, 649MHz, 752MHz, 850MHz, 927MHz, 1.45GHz, 1.79GHz, 1.92GHz, 2.05GHz, 2.5GHz, 3.75GHz, 5.41GHz
| Attribute | Value |
|---|---|
| Gain | 4.5dBi, 4.4dBi, 3.7dBi, 4dBi, 4.2dBi, 4.6dBi, 5.6dBi, 5.4dBi, 4.1dBi, 5dBi, 5.7dBi, 6.8dBi, 7.3dBi |
| VSWR | 2, 2.5 |
| Grade | - |
| Series | - |
| Features | Cable - 304.8mm |
| Packaging | Bulk |
| Return Loss | - |
| Termination | 4.3/10 - Female |
| Antenna Type | Flat Panel |
| Applications | 2G, 3G, 4G, AWS, CBRS, LTE, UMTS |
| Height (Max) | 0.300" (7.62mm) |
| Manufacturer | TE Connectivity |
| Mounting Type | Ceiling Mount |
| Qualification | - |
| Frequency Group | Wide Band |
| Frequency Range | 350MHz ~ 380MHz, 380MHz ~ 520MHz, 600MHz ~ 698MHz, 698MHz ~ 806MHz, 806MHz ~ 894MHz, 894MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz |
| Number of Bands | 13 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 365MHz, 450MHz, 649MHz, 752MHz, 850MHz, 927MHz, 1.45GHz, 1.79GHz, 1.92GHz, 2.05GHz, 2.5GHz, 3.75GHz, 5.41GHz |
