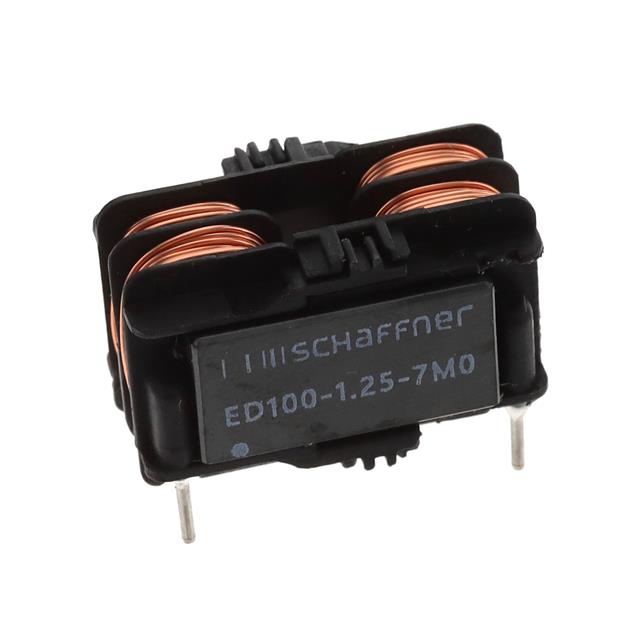

TE Connectivity Schaffner ED100-1.25-7M0
Images are for reference only
Manufacturer
Manufacturer No
ED100-1.25-7M0
Availability
In Stock
Package
Vertical, 4 PC Pin
Packaging
Box
Description
CMC 7MH 1.25A 2LN TH
Detailed Description
7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.25A DCR 400mOhm (Typ)
Datasheet
Payment
Delivery
Series
ED100
Ratings
-
Features
-
Packaging
Box
Filter Type
Power Line
Height (Max)
0.610" (15.50mm)
Manufacturer
TE Connectivity Schaffner
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Approval Agency
-
Number of Lines
2
Size / Dimension
0.945" L x 0.563" W (24.00mm x 14.30mm)
Voltage Rating - AC
300V
Voltage Rating - DC
-
Current Rating (Max)
1.25A
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
7 mH @ 10 kHz
DC Resistance (DCR) (Max)
400mOhm (Typ)
| Attribute | Value |
|---|---|
| Series | ED100 |
| Ratings | - |
| Features | - |
| Packaging | Box |
| Filter Type | Power Line |
| Height (Max) | 0.610" (15.50mm) |
| Manufacturer | TE Connectivity Schaffner |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.945" L x 0.563" W (24.00mm x 14.30mm) |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Current Rating (Max) | 1.25A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 7 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 400mOhm (Typ) |
