Step1: Product
TE Connectivity Potter & Brumfield Relays RT334730

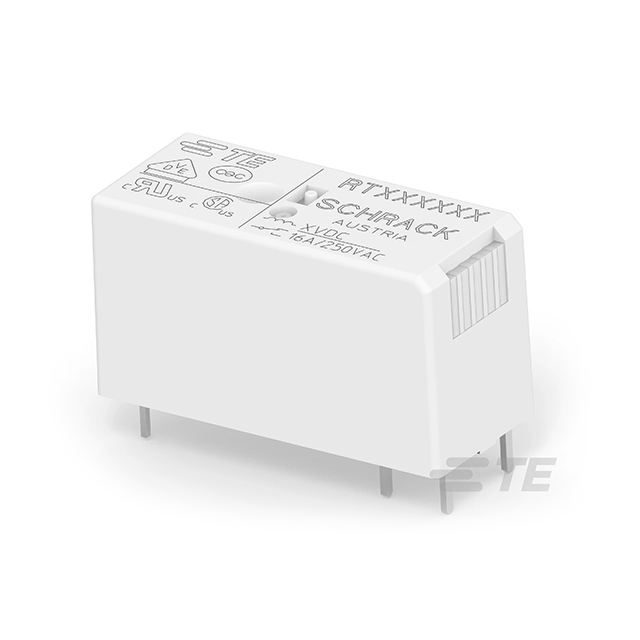

Images are for reference only
Manufacturer
Manufacturer No
RT334730
Quantity
10
Availability
In Stock
Packaging
Tube
Description
RELAY GEN PURPOSE SPST 16A 230V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 230VAC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
RT1, SCHRACK
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
Sealed - Flux Protection
Coil Current
14.2 mA
Coil Voltage
230VAC
Contact Form
SPST-NO (1 Form A)
Operate Time
8 ms
Release Time
6 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CQC, CSA, cURus, VDE
Coil Insulation
Class F
Coil Resistance
32.5 kOhms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
RT3347
Load - Max Switching
6400VA
Must Operate Voltage
172.5 VAC
Must Release Voltage
34.5 VAC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | RT1, SCHRACK |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 14.2 mA |
| Coil Voltage | 230VAC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CQC, CSA, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 32.5 kOhms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | RT3347 |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 172.5 VAC |
| Must Release Voltage | 34.5 VAC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
