Step1: Product

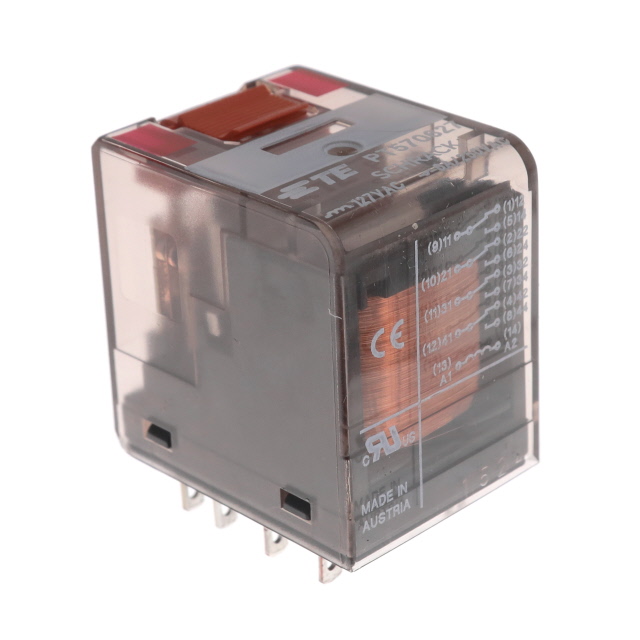

TE Connectivity Potter & Brumfield Relays 8-1419132-8
Images are for reference only
Manufacturer
Manufacturer No
8-1419132-8
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE 4PDT 6A
Detailed Description
General Purpose Relay 4PDT (4 Form C) Coil Socketable
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
PT, SCHRACK
Features
Test Button
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
Sealed - Flux Protection
Coil Voltage
-
Contact Form
4PDT (4 Form C)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Socketable
Qualification
-
Approval Agency
cURus, VDE
Coil Insulation
Class F
Contact Material
Silver Nickel (AgNi)
Switching Voltage
240VAC - Max
Termination Style
Plug In, Quick Connect - 0.110" (2.8mm)
Base Product Number
PT570
Load - Max Switching
1440VA
Must Operate Voltage
-
Must Release Voltage
-
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
6 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | PT, SCHRACK |
| Features | Test Button |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Coil Voltage | - |
| Contact Form | 4PDT (4 Form C) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Socketable |
| Qualification | - |
| Approval Agency | cURus, VDE |
| Coil Insulation | Class F |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 240VAC - Max |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Base Product Number | PT570 |
| Load - Max Switching | 1440VA |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 6 A |
