Step1: Product

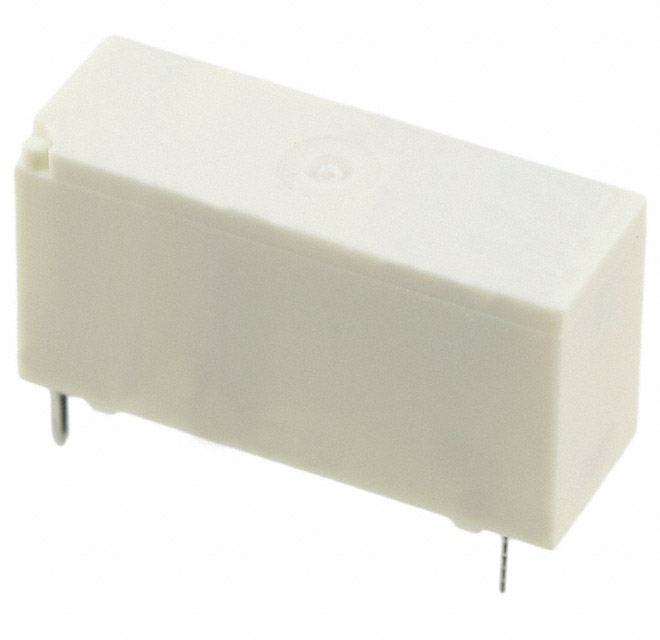

TE Connectivity Potter & Brumfield Relays 8-1393222-6
Images are for reference only
Manufacturer
Manufacturer No
8-1393222-6
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 8A 9V
Detailed Description
General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
MSR, SCHRACK
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
Sealed - Fully
Coil Current
24.7 mA
Coil Voltage
9VDC
Contact Form
SPDT (1 Form C)
Operate Time
10 ms
Release Time
5 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
cURus, VDE
Coil Insulation
Class A
Coil Resistance
364 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
1393222
Load - Max Switching
3200VA
Must Operate Voltage
6.1 VDC
Must Release Voltage
0.9 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
8 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | MSR, SCHRACK |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Current | 24.7 mA |
| Coil Voltage | 9VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | cURus, VDE |
| Coil Insulation | Class A |
| Coil Resistance | 364 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | 1393222 |
| Load - Max Switching | 3200VA |
| Must Operate Voltage | 6.1 VDC |
| Must Release Voltage | 0.9 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 8 A |
