Step1: Product

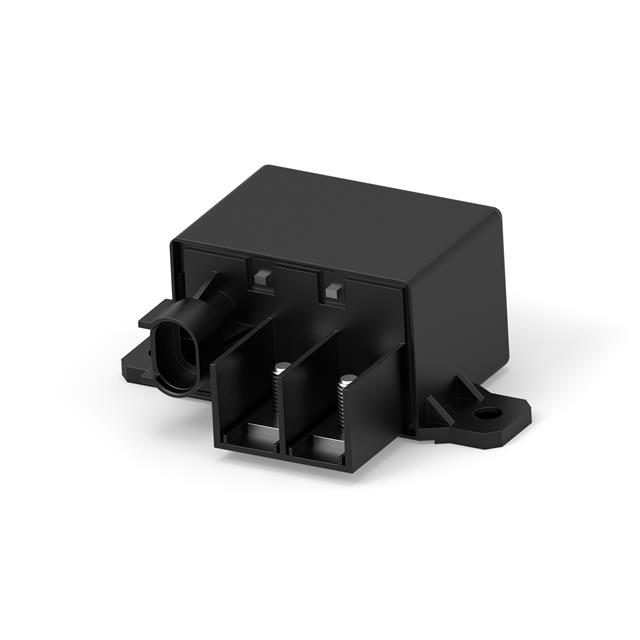

TE Connectivity Potter & Brumfield Relays 5-1414968-1
Images are for reference only
Manufacturer
Manufacturer No
5-1414968-1
Availability
In Stock
Packaging
Bulk
Description
V23132B2002B200-EV-USBX
Detailed Description
General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Chassis Mount
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
V23132, AXICOM
Features
-
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
170.2 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (DM) (1 Form X)
Operate Time
25 ms
Release Time
8 ms
Mounting Type
Chassis Mount
Qualification
-
Approval Agency
-
Coil Insulation
-
Coil Resistance
141 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
24VDC - Nom
Termination Style
Screw Terminal
Base Product Number
V23132
Load - Max Switching
-
Must Operate Voltage
14.4 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
130 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | V23132, AXICOM |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 170.2 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Operate Time | 25 ms |
| Release Time | 8 ms |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Approval Agency | - |
| Coil Insulation | - |
| Coil Resistance | 141 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 24VDC - Nom |
| Termination Style | Screw Terminal |
| Base Product Number | V23132 |
| Load - Max Switching | - |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 130 A |
