Step1: Product

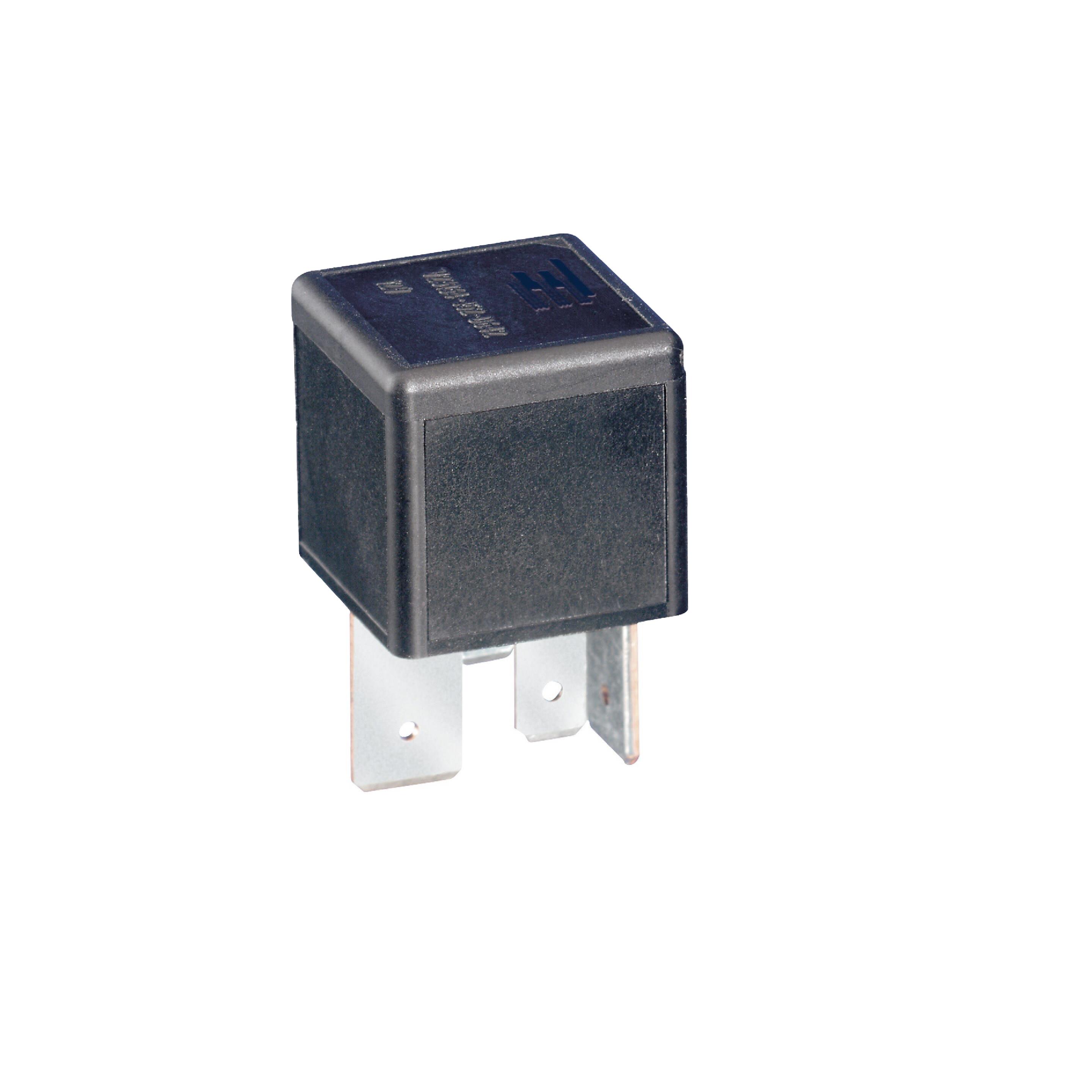

TE Connectivity Potter & Brumfield Relays 3-1904117-4
Images are for reference only
Manufacturer
Manufacturer No
3-1904117-4
Quantity
85
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE SPST 70A 24V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Socketable
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
F7
Features
Resistor
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
83.3 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
7 ms
Release Time
2 ms
Mounting Type
Socketable
Qualification
-
Approval Agency
-
Coil Insulation
-
Coil Resistance
288 Ohms
Contact Material
Silver Alloy
Switching Voltage
-
Termination Style
Plug In
Base Product Number
1904117
Load - Max Switching
-
Must Operate Voltage
16 VDC
Must Release Voltage
4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
70 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | F7 |
| Features | Resistor |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 83.3 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Mounting Type | Socketable |
| Qualification | - |
| Approval Agency | - |
| Coil Insulation | - |
| Coil Resistance | 288 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | - |
| Termination Style | Plug In |
| Base Product Number | 1904117 |
| Load - Max Switching | - |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 70 A |
