Step1: Product

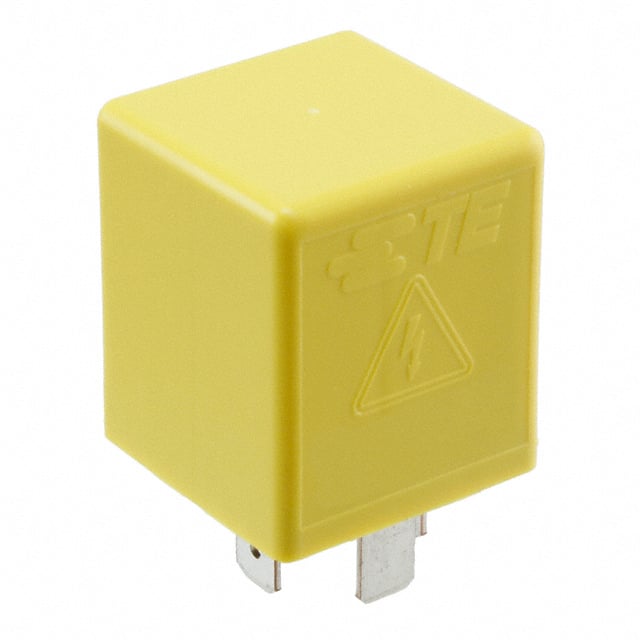

TE Connectivity Potter & Brumfield Relays 2-1904058-7
Images are for reference only
Manufacturer
Manufacturer No
2-1904058-7
Availability
In Stock
Packaging
Bulk
Description
RELAY AUTO SPST-NO 20A 12V
Detailed Description
Automotive Relay SPST-NO (DM) (1 Form X) 12VDC Coil Socketable
Datasheet
Payment
Delivery
Series
Mini K HV
Features
Resistor
Coil Type
Non Latching
Packaging
Bulk
Coil Power
3.5W
Coil Current
288 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (DM) (1 Form X)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
2.5 ms
Release Time
1 ms
Mounting Type
Socketable
Coil Resistance
41.6 Ohms
Contact Material
Silver (Ag)
Switching Voltage
400VDC - Nom
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Base Product Number
2-1904058
Must Operate Voltage
6.9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | Mini K HV |
| Features | Resistor |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 3.5W |
| Coil Current | 288 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 2.5 ms |
| Release Time | 1 ms |
| Mounting Type | Socketable |
| Coil Resistance | 41.6 Ohms |
| Contact Material | Silver (Ag) |
| Switching Voltage | 400VDC - Nom |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | 2-1904058 |
| Must Operate Voltage | 6.9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 20 A |
