Step1: Product

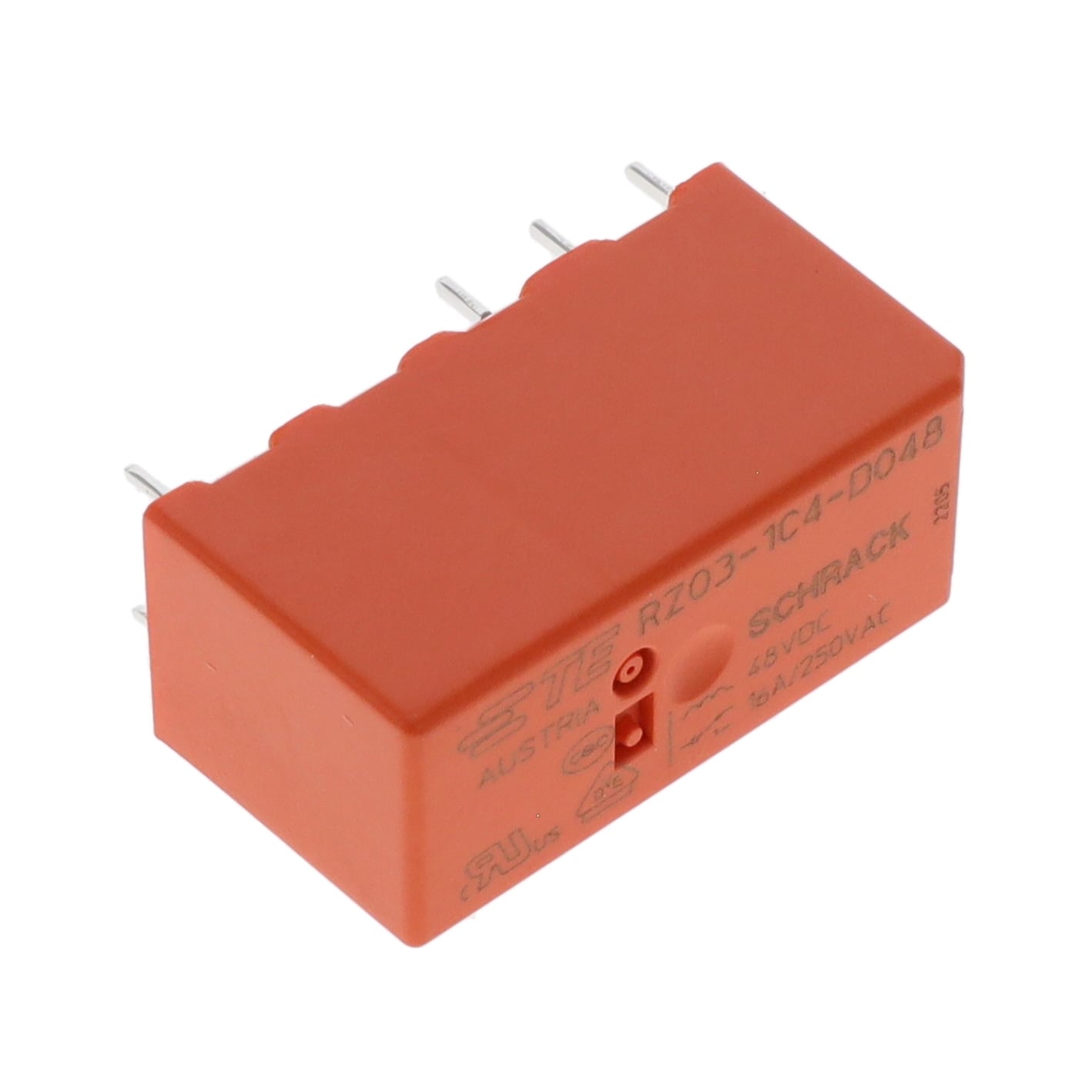

TE Connectivity Potter & Brumfield Relays 2-1415899-4
Images are for reference only
Manufacturer
Manufacturer No
2-1415899-4
Packaging
Bulk
Description
RELAY GEN PURPOSE SPDT 16A 48V
Detailed Description
General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
RZ, SCHRACK
Features
-
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
8.4 mA
Coil Voltage
48VDC
Contact Form
SPDT (1 Form C)
Operate Time
8 ms
Release Time
6 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CQC, cURus, VDE
Coil Insulation
Class F
Coil Resistance
5.73 kOhms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
RZ03-1C4
Load - Max Switching
6400VA
Must Operate Voltage
33.6 VDC
Must Release Voltage
4.8 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | RZ, SCHRACK |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 8.4 mA |
| Coil Voltage | 48VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CQC, cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 5.73 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | RZ03-1C4 |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 16 A |
