Step1: Product
TE Connectivity Passive Product 36273225202R2K

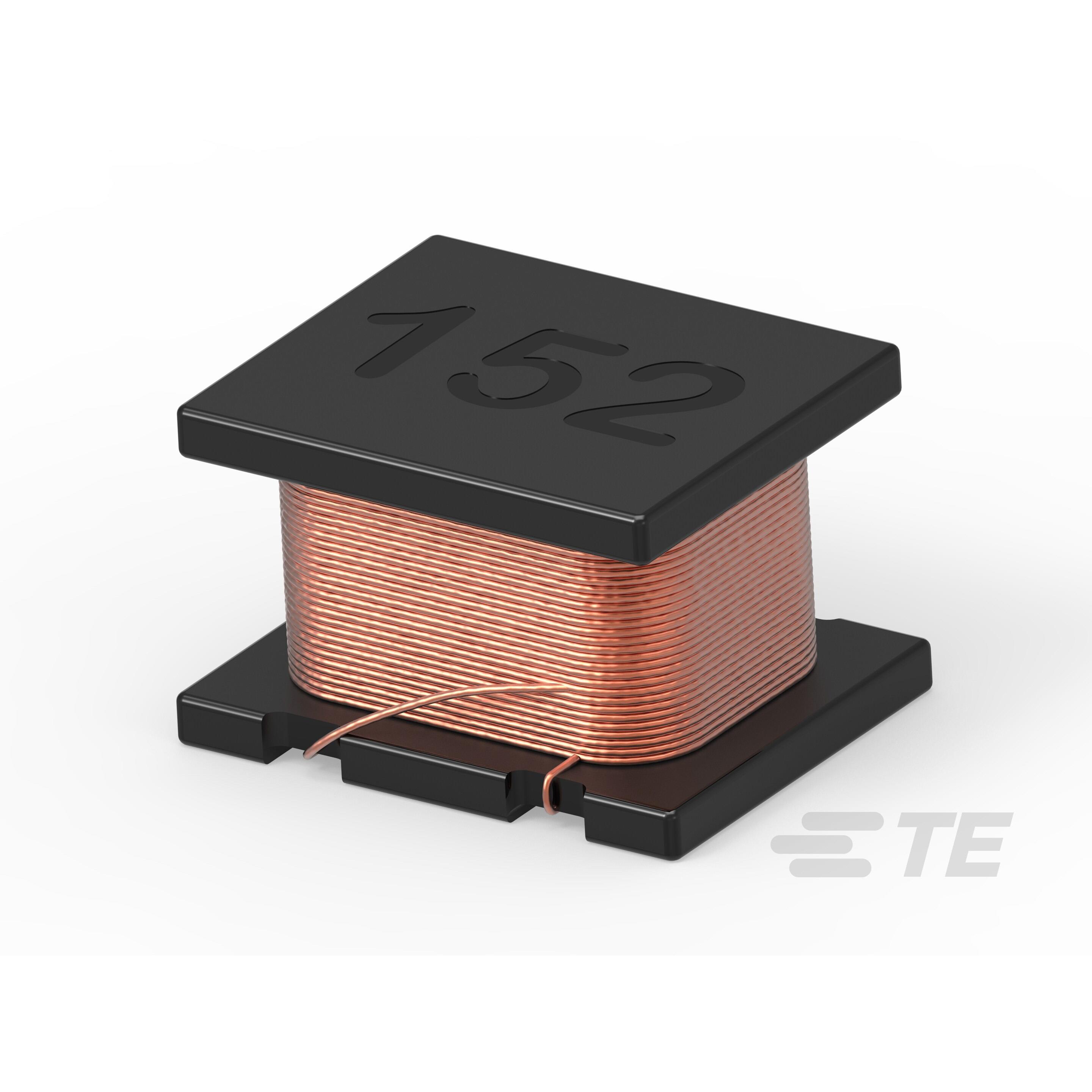

Images are for reference only
Manufacturer
Manufacturer No
36273225202R2K
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 2.2UH 370MA 800 MOHM
Detailed Description
2.2 µH Unshielded Wirewound Inductor 370 mA 800mOhm Max 1210 (3225 Metric)
Datasheet
Payment
Delivery
Mfr
TE Connectivity Passive Product
Type
Wirewound
Series
3627, Sigma Inductors
Ratings
-
Features
-
Q @ Freq
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±10%
Inductance
2.2 µH
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric)
Material - Core
Ferrite
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
DC Resistance (DCR)
800mOhm Max
Current Rating (Amps)
370 mA
Height - Seated (Max)
0.091" (2.30mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1210
Frequency - Self Resonant
-
Current - Saturation (Isat)
-
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Passive Product |
| Type | Wirewound |
| Series | 3627, Sigma Inductors |
| Ratings | - |
| Features | - |
| Q @ Freq | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 2.2 µH |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DC Resistance (DCR) | 800mOhm Max |
| Current Rating (Amps) | 370 mA |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1210 |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 1 MHz |
