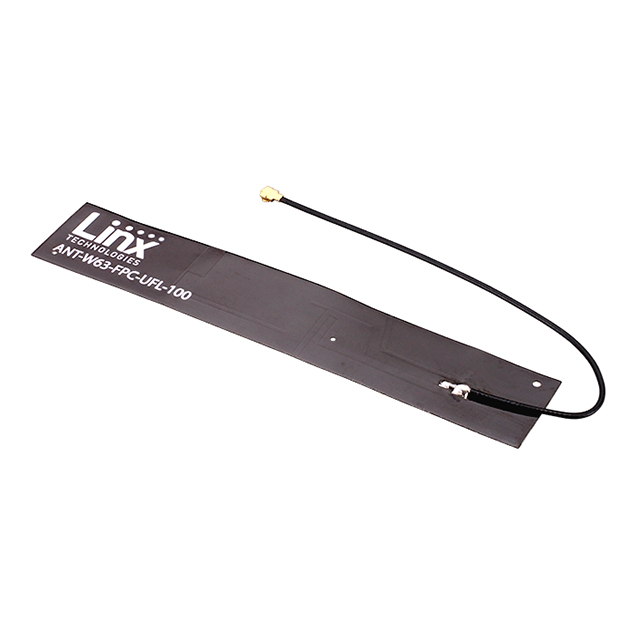

TE Connectivity Linx ANT-W63-FPC-UFL-100
Images are for reference only
Manufacturer
Manufacturer No
ANT-W63-FPC-UFL-100
Availability
In Stock
Packaging
Bag
Description
RF ANT WIFI 6GHZ FLEX ADHES UFL
Detailed Description
RF ANTENNA 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Datasheet
Payment
Delivery
Gain
6.1dBi, 6.1dBi, 6.9dBi
VSWR
1.2, 3.3, 2.6
Series
FPC
Features
Cable - 100mm
Packaging
Bag
Power - Max
2 W
Return Loss
-20.8dB, -5.4dB, -7dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
Height (Max)
0.010" (0.20mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
Ingress Protection
-
RF Family/Standard
WiFi
Base Product Number
ANT-W63
Frequency (Center/Band)
2.4GHz, 5GHz, 6GHz
| Attribute | Value |
|---|---|
| Gain | 6.1dBi, 6.1dBi, 6.9dBi |
| VSWR | 1.2, 3.3, 2.6 |
| Series | FPC |
| Features | Cable - 100mm |
| Packaging | Bag |
| Power - Max | 2 W |
| Return Loss | -20.8dB, -5.4dB, -7dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
| Height (Max) | 0.010" (0.20mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| Ingress Protection | - |
| RF Family/Standard | WiFi |
| Base Product Number | ANT-W63 |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 6GHz |
