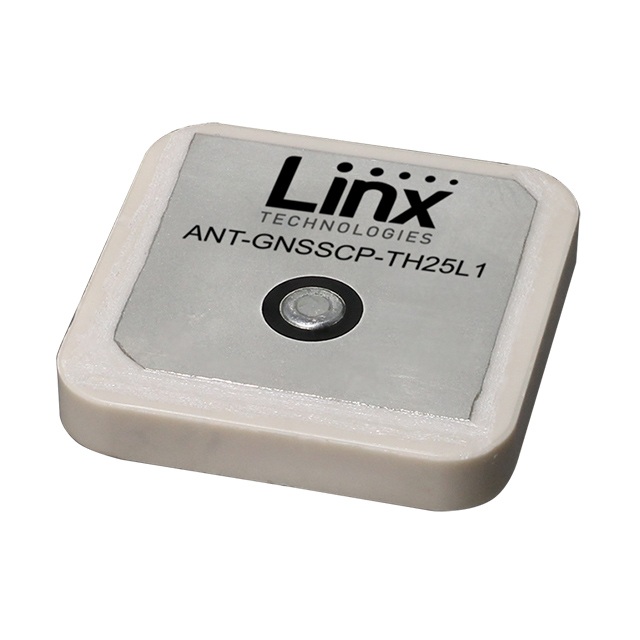

TE Connectivity Linx ANT-GNSSCP-TH25L1
Images are for reference only
Manufacturer
Manufacturer No
ANT-GNSSCP-TH25L1
Availability
In Stock
Packaging
Tray
Description
RF ANT GNSS PATCH L1 25X25 PIN
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Pin Adhesive
Datasheet
Payment
Delivery
Gain
3.5dBi, 4dBi, 4dBi
VSWR
5.6, 2.1, 1.7
Series
GNSSCP
Features
-
Packaging
Tray
Power - Max
8 W
Return Loss
-3.1dB, -9dB, -11.7dB
Termination
Pin
Antenna Type
Ceramic Patch
Applications
Beidou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.157" (4.00mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.567GHz ~ 1.609GHz
Number of Bands
3
Ingress Protection
-
RF Family/Standard
Navigation
Base Product Number
ANT-GNSSCP
Frequency (Center/Band)
1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 3.5dBi, 4dBi, 4dBi |
| VSWR | 5.6, 2.1, 1.7 |
| Series | GNSSCP |
| Features | - |
| Packaging | Tray |
| Power - Max | 8 W |
| Return Loss | -3.1dB, -9dB, -11.7dB |
| Termination | Pin |
| Antenna Type | Ceramic Patch |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.157" (4.00mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.567GHz ~ 1.609GHz |
| Number of Bands | 3 |
| Ingress Protection | - |
| RF Family/Standard | Navigation |
| Base Product Number | ANT-GNSSCP |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
