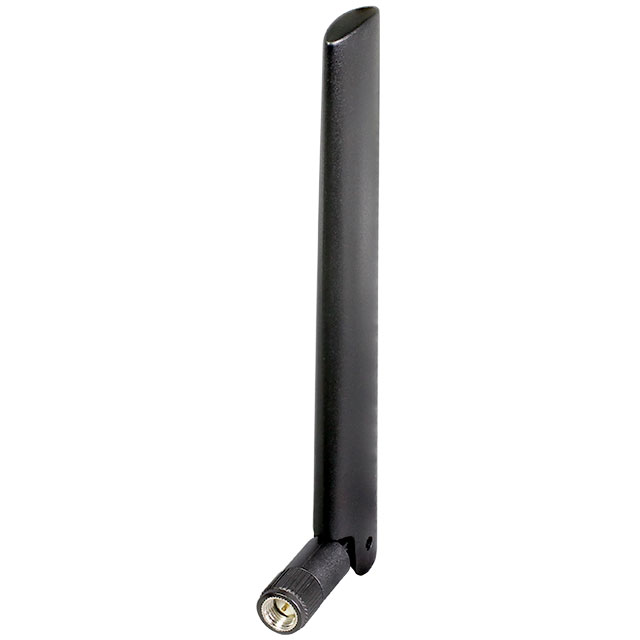

TE Connectivity Linx ANT-5GWWS1-SMA
Images are for reference only
Manufacturer
Manufacturer No
ANT-5GWWS1-SMA
Availability
In Stock
Packaging
Bag
Description
RF ANT 617MHZ-5GHZ 5G TILT SMA
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS Blade, Tilt SMA Male Connector Mount
Datasheet
Payment
Delivery
Gain
0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi
VSWR
3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8
Series
5GW
Features
-
Packaging
Bag
Power - Max
5 W
Return Loss
-5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB
Termination
SMA Male
Antenna Type
Blade, Tilt
Applications
4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
5.340" (135.70mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz
Number of Bands
9
Ingress Protection
-
RF Family/Standard
Cellular, General ISM, Navigation
Base Product Number
ANT-5
Frequency (Center/Band)
600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz
| Attribute | Value |
|---|---|
| Gain | 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi |
| VSWR | 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8 |
| Series | 5GW |
| Features | - |
| Packaging | Bag |
| Power - Max | 5 W |
| Return Loss | -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB |
| Termination | SMA Male |
| Antenna Type | Blade, Tilt |
| Applications | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 5.340" (135.70mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz |
| Number of Bands | 9 |
| Ingress Protection | - |
| RF Family/Standard | Cellular, General ISM, Navigation |
| Base Product Number | ANT-5 |
| Frequency (Center/Band) | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz |
