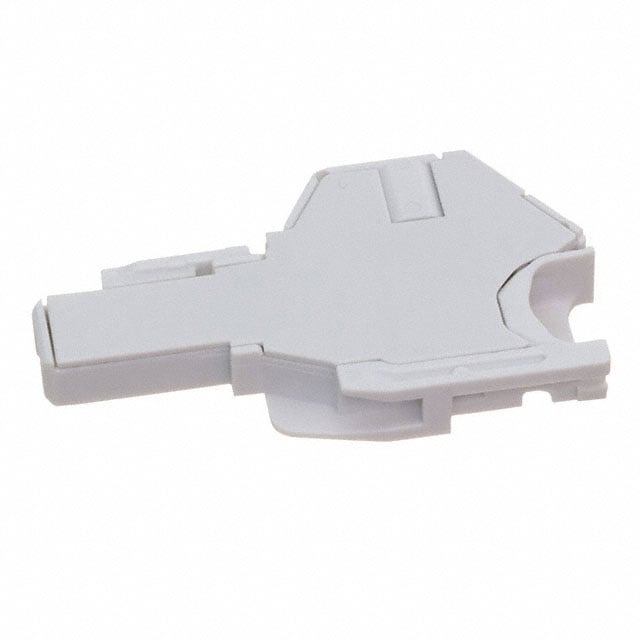

TE Connectivity ENTRELEC 1SNK805715R0000
Images are for reference only
Manufacturer
Manufacturer No
1SNK805715R0000
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK PLUG 1POS
Detailed Description
1 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug, Female Sockets
Color
Gray
Pitch
-
Series
SNK, CDS
Features
-
Packaging
Bulk
Screw Size
-
Current - UL
28 A
Manufacturer
TE Connectivity ENTRELEC
Voltage - UL
300 V
Current - IEC
29A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
800 V
Torque - Screw
-
Plug Wire Entry
180°
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
1.550" (39.37mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
10.5mm
Header Orientation
-
Ingress Protection
IP20
Base Product Number
1SNK8
Contact Tail Length
-
Number of Positions
1
Positions Per Level
1
Contact Mating Finish
-
Operating Temperature
-55°C ~ 110°C
Wire Gauge or Range - AWG
10-24 AWG
Wire Gauge or Range - mm²
0.2-4mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Gray |
| Pitch | - |
| Series | SNK, CDS |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 28 A |
| Manufacturer | TE Connectivity ENTRELEC |
| Voltage - UL | 300 V |
| Current - IEC | 29A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 800 V |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 1.550" (39.37mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 10.5mm |
| Header Orientation | - |
| Ingress Protection | IP20 |
| Base Product Number | 1SNK8 |
| Contact Tail Length | - |
| Number of Positions | 1 |
| Positions Per Level | 1 |
| Contact Mating Finish | - |
| Operating Temperature | -55°C ~ 110°C |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Material Flammability Rating | UL94 V-0 |
