Step1: Product

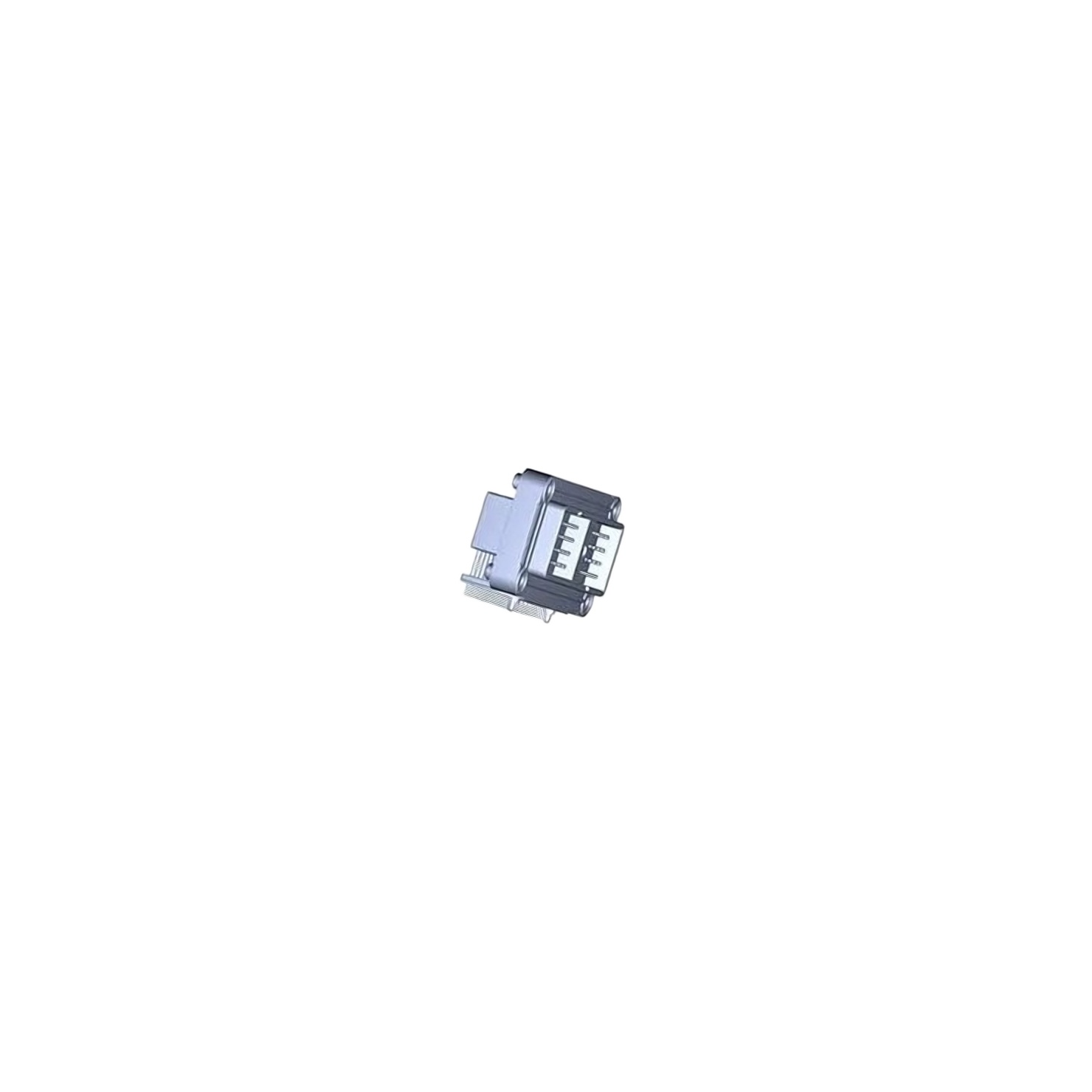

TE Connectivity Deutsch Connectors DRC13-40PA-CG01
Images are for reference only
Manufacturer
Manufacturer No
DRC13-40PA-CG01
Packaging
Tray
Description
HDR, 40P, BLK, RA, M5 FLG, SN/NI
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 40 position 0.215" (5.46mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
DRC
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
4
Pitch - Mating
0.215" (5.46mm)
Voltage Rating
250VAC/DC
Contact Material
-
Insulation Color
Black
Insulation Height
1.985" (50.42mm)
Ingress Protection
-
Insulation Material
Plastic
Number of Positions
40
Row Spacing - Mating
0.215" (5.45mm)
Contact Finish - Post
Gold, Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | DRC |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 4 |
| Pitch - Mating | 0.215" (5.46mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | - |
| Insulation Color | Black |
| Insulation Height | 1.985" (50.42mm) |
| Ingress Protection | - |
| Insulation Material | Plastic |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.215" (5.45mm) |
| Contact Finish - Post | Gold, Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
