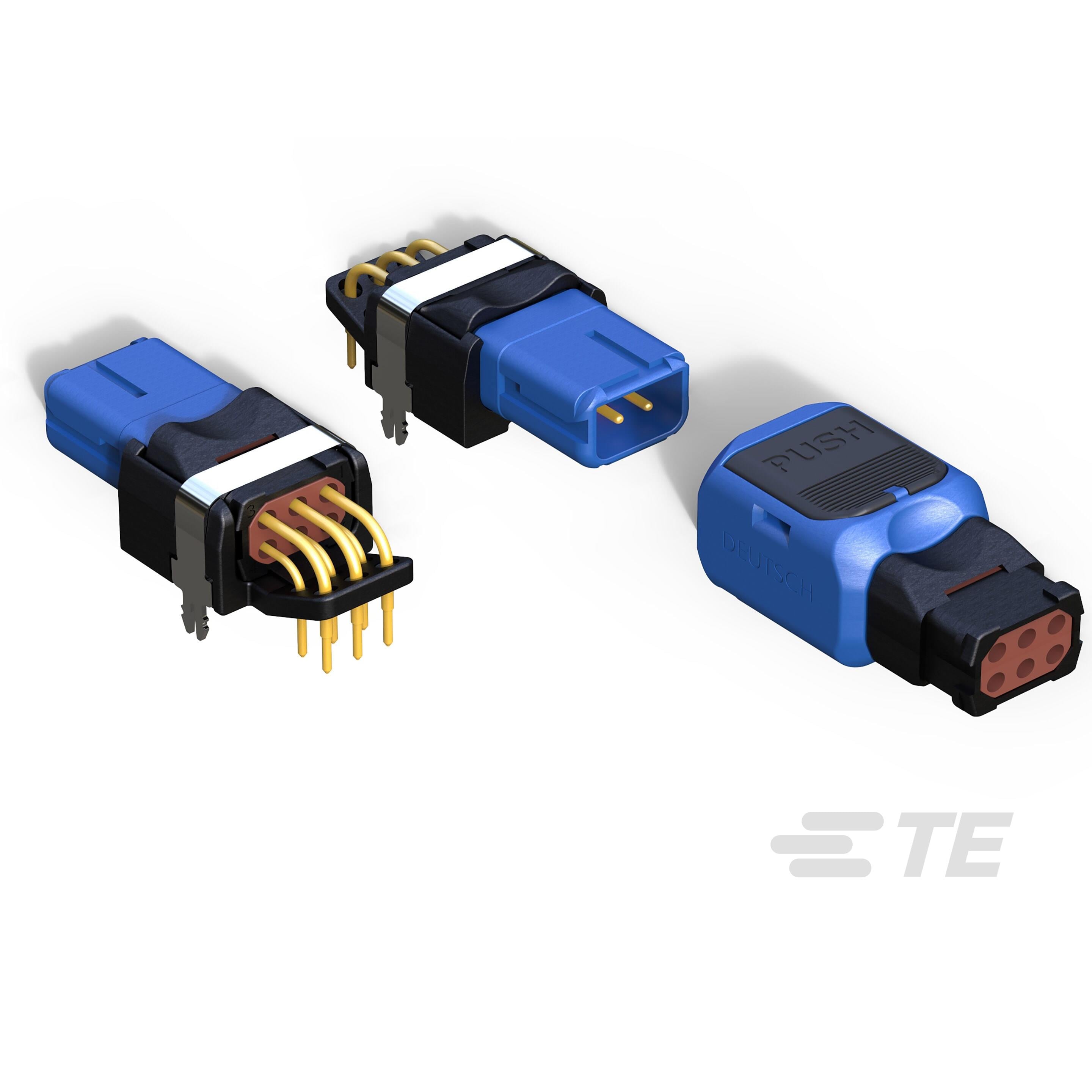

TE Connectivity Deutsch Connectors D369-G99-BP4
Images are for reference only
Manufacturer
Manufacturer No
D369-G99-BP4
Packaging
Bulk
Description
CONN HEADER R/A 9POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
369
Features
Board Guide, Board Lock, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Beryllium Copper
Insulation Color
Blue
Insulation Height
0.331" (8.40mm)
Ingress Protection
IP67
Base Product Number
D369
Insulation Material
Polyetherimide, Glass Filled
Number of Positions
9
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
-
Contact Length - Post
0.059" (1.50mm)
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 175°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | 369 |
| Features | Board Guide, Board Lock, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Blue |
| Insulation Height | 0.331" (8.40mm) |
| Ingress Protection | IP67 |
| Base Product Number | D369 |
| Insulation Material | Polyetherimide, Glass Filled |
| Number of Positions | 9 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | - |
| Contact Length - Post | 0.059" (1.50mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 175°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
