Step1: Product

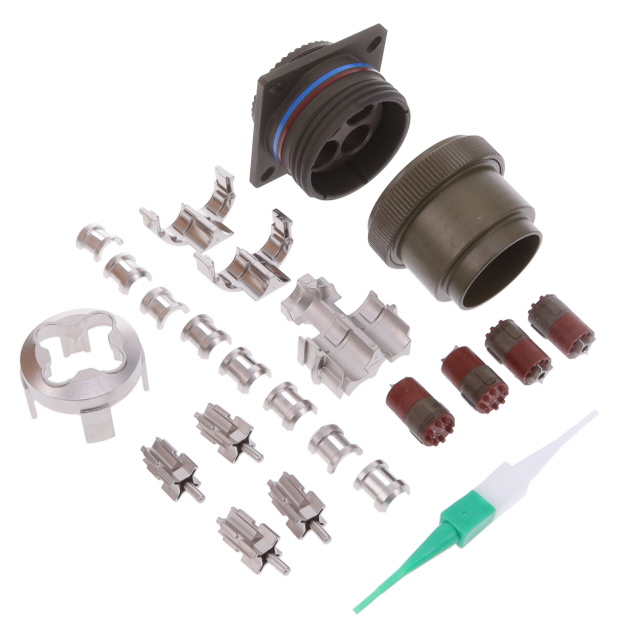

TE Connectivity Deutsch Connectors CFX20W2532AZN-1077
Images are for reference only
Manufacturer
Manufacturer No
CFX20W2532AZN-1077
Packaging
Bag
Description
RECP ASSY
Detailed Description
32 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
Payment
Delivery
Mfr
TE Connectivity Deutsch Connectors
Color
Olive Drab
Series
CeeLok FAS-X
Features
Backshell
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder
Applications
-
Shell Finish
Olive Drab Cadmium
Cable Opening
-
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum
Voltage Rating
-
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
CFX20
Number of Positions
32
Shell Size - Insert
25-32
Current Rating (Amps)
-
Operating Temperature
-
Contact Finish - Mating
-
Backshell Material, Plating
Aluminum Alloy, Olive Drab Cadmium
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Color | Olive Drab |
| Series | CeeLok FAS-X |
| Features | Backshell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder |
| Applications | - |
| Shell Finish | Olive Drab Cadmium |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum |
| Voltage Rating | - |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | CFX20 |
| Number of Positions | 32 |
| Shell Size - Insert | 25-32 |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Contact Finish - Mating | - |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
