Step1: Product

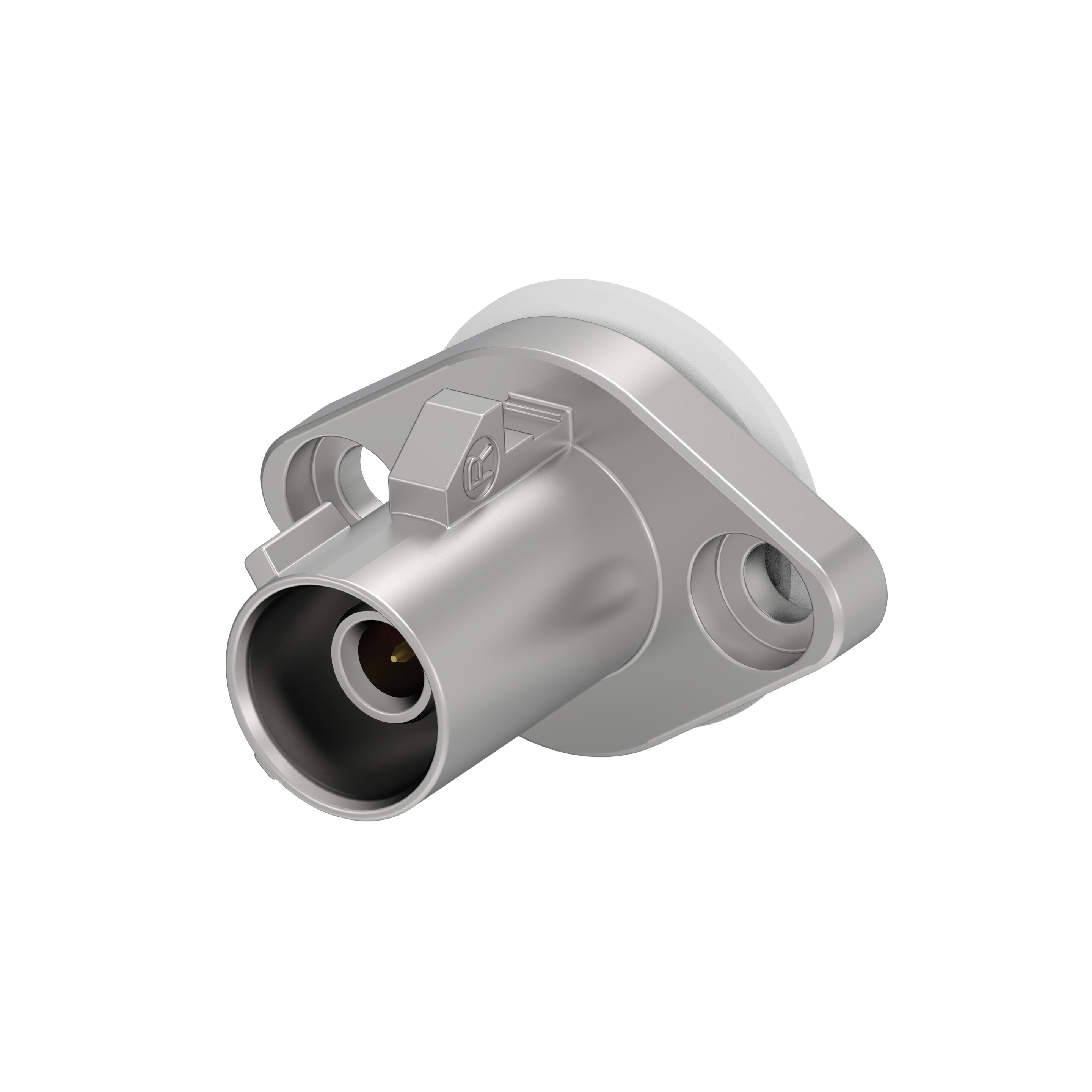

TE Connectivity Deutsch Connectors 2390730-4
Images are for reference only
Manufacturer
Manufacturer No
2390730-4
Packaging
Tray
Description
ADAPTOR SMB TO FAKRA ASSY
Detailed Description
Adapter Coaxial Connector SMB Jack, Female Socket To SMB Fakra Plug, Male Pin 50 Ohms
Payment
Delivery
Mfr
TE Connectivity Deutsch Connectors
Style
Straight
Series
-
Features
Code D
Includes
-
Impedance
50 Ohms
Packaging
Tray
Body Finish
Nickel
Adapter Type
Jack to Jack
Body Material
Zinc Die Cast
Center Gender
Female to Male
Mating Cycles
-
Mounting Type
Panel Mount
Adapter Series
SMB to SMB Fakra
Fastening Type
Locking Ramp, Snap-On
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
Flange
Ingress Protection
-
Dielectric Material
Polybutylene Terephthalate (PBT)
Operating Temperature
-40°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
Convert To (Adapter End)
SMB Fakra Plug, Male Pin
Convert From (Adapter End)
SMB Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Straight |
| Series | - |
| Features | Code D |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Nickel |
| Adapter Type | Jack to Jack |
| Body Material | Zinc Die Cast |
| Center Gender | Female to Male |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Adapter Series | SMB to SMB Fakra |
| Fastening Type | Locking Ramp, Snap-On |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -40°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
| Convert To (Adapter End) | SMB Fakra Plug, Male Pin |
| Convert From (Adapter End) | SMB Jack, Female Socket |
