Step1: Product

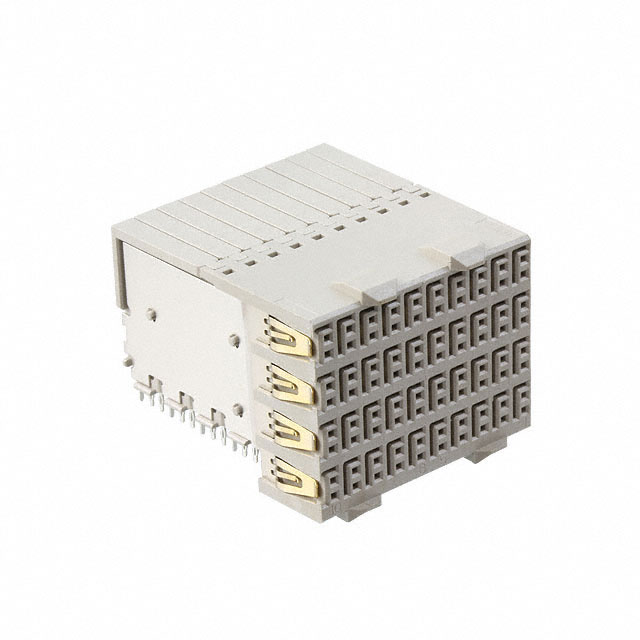

TE Connectivity AMP Connectors 6469001-1
Images are for reference only
Manufacturer
Manufacturer No
6469001-1
Quantity
14
Availability
In Stock
Packaging
Tube
Description
CONN RCPT HI SPEED 120P EDGE MT
Detailed Description
120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle High Speed
Datasheet
Payment
Delivery
Color
-
Pitch
0.098" (2.50mm)
Series
Z-PACK HM-Zd
Features
-
Packaging
Tube
Termination
Press-Fit
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
8
Voltage Rating
250V
Connector Style
High Speed
Connector Usage
Daughtercard
Number of Columns
10
Base Product Number
6469001
Number of Positions
120
Current Rating (Amps)
0.700A
Operating Temperature
-65°C ~ 105°C
Contact Layout, Typical
80 Single Signal, 40 Ground
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | - |
| Pitch | 0.098" (2.50mm) |
| Series | Z-PACK HM-Zd |
| Features | - |
| Packaging | Tube |
| Termination | Press-Fit |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 8 |
| Voltage Rating | 250V |
| Connector Style | High Speed |
| Connector Usage | Daughtercard |
| Number of Columns | 10 |
| Base Product Number | 6469001 |
| Number of Positions | 120 |
| Current Rating (Amps) | 0.700A |
| Operating Temperature | -65°C ~ 105°C |
| Contact Layout, Typical | 80 Single Signal, 40 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
